Stackable Adapters
Amphenol’s stackable adapter system is an innovative way to aggregate a high number of connections into a small footprint. The stackable adapters are modular and allow network and equipment designers to improve fiber density for applications where it is required. The stackable adapters have a track system for alignment and a permanent locking feature that prevents the adapters from coming loose.
Amphenol’s stackable adapter systems are for use with all IEC 61754-20 and TIA/EIA 604-10 compliant industry standard LC connectors and IEC 61754-7 and TIA/EIA 604-5 compliant industry standard MPO connector systems including MTP® branded connectors.
The 45⁰ angled ear end adapters enable directional cable routing of LC/MPO assemblies. All Amphenol Stackable Adapters are offered with our patented internal shutter and external shutters as an option.
Amphenol Fiber Optic Products will preassemble the stackable adapters into your custom configuration saving you time and ensuring the highest quality.
-
Straight Ear End Adapter - Use for mounting with center adapters for straight cable routing
-
Outer 45° Angled Ear Adapter - Use for mounting with center adapters for angled routing
-
Inner 45° Angled Ear Adapter - Use with outer mounting adapters for angled routing
-
Simplex Center Adapter- Use for odd numbered MPO ganged clusters
-
Duplex Center Adapter - Use for even numbered MPO ganged clusters
-
Part Number Builder

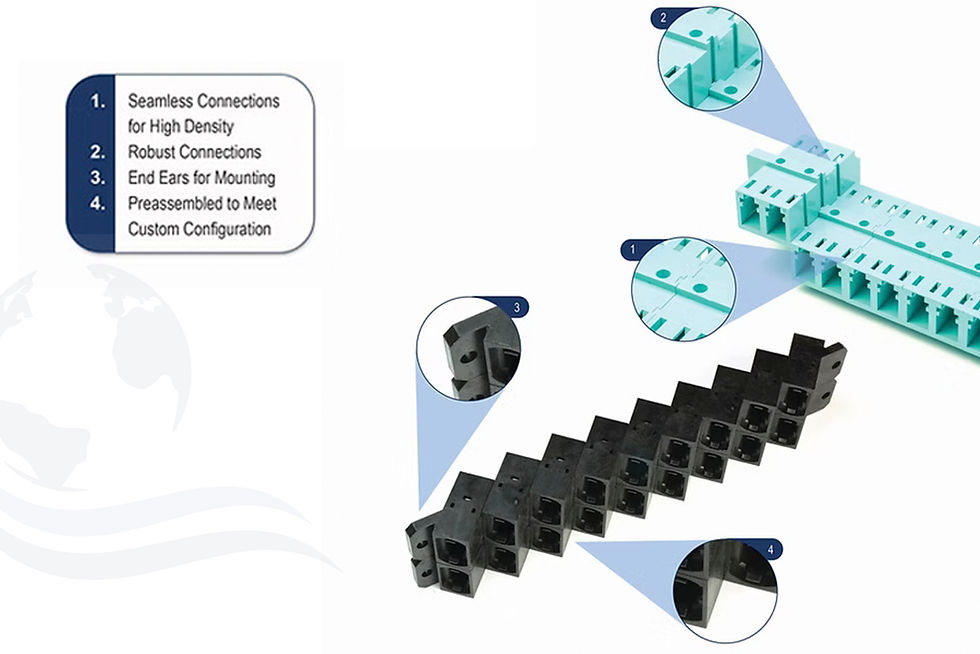

Key Features

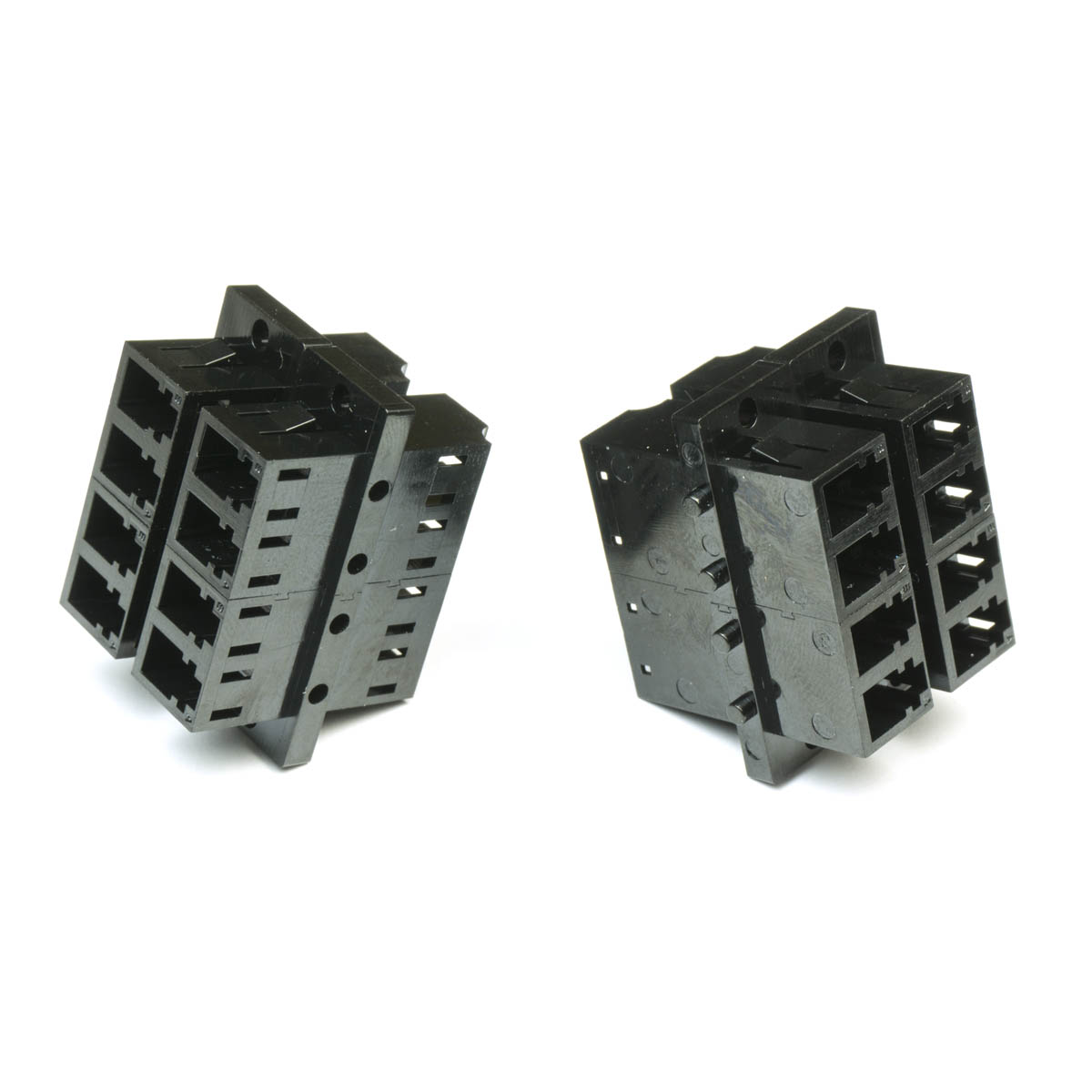

Stackable
Straight Ear LC

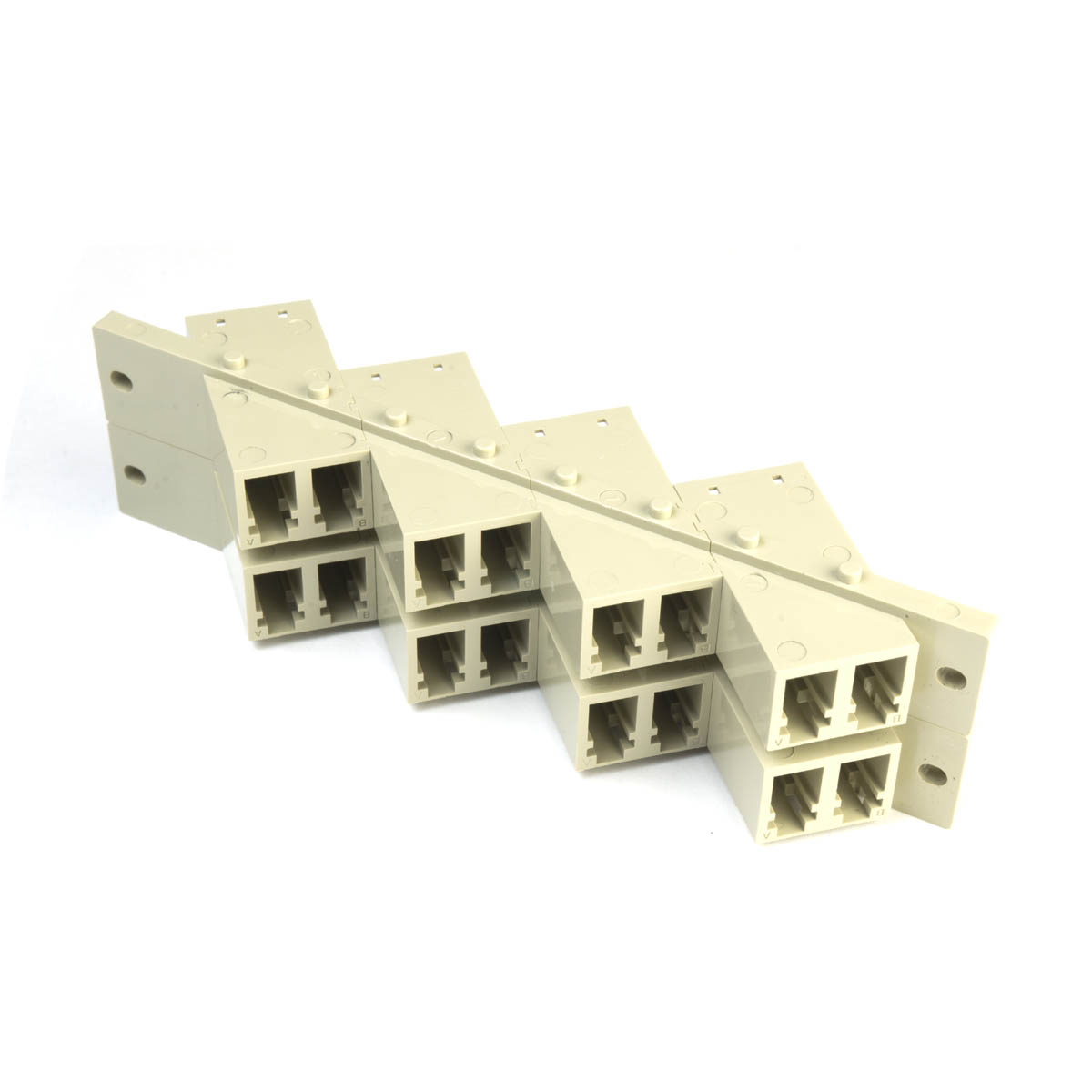

Stackable
Angled Ear LC
Stackable
Straight Ear LC

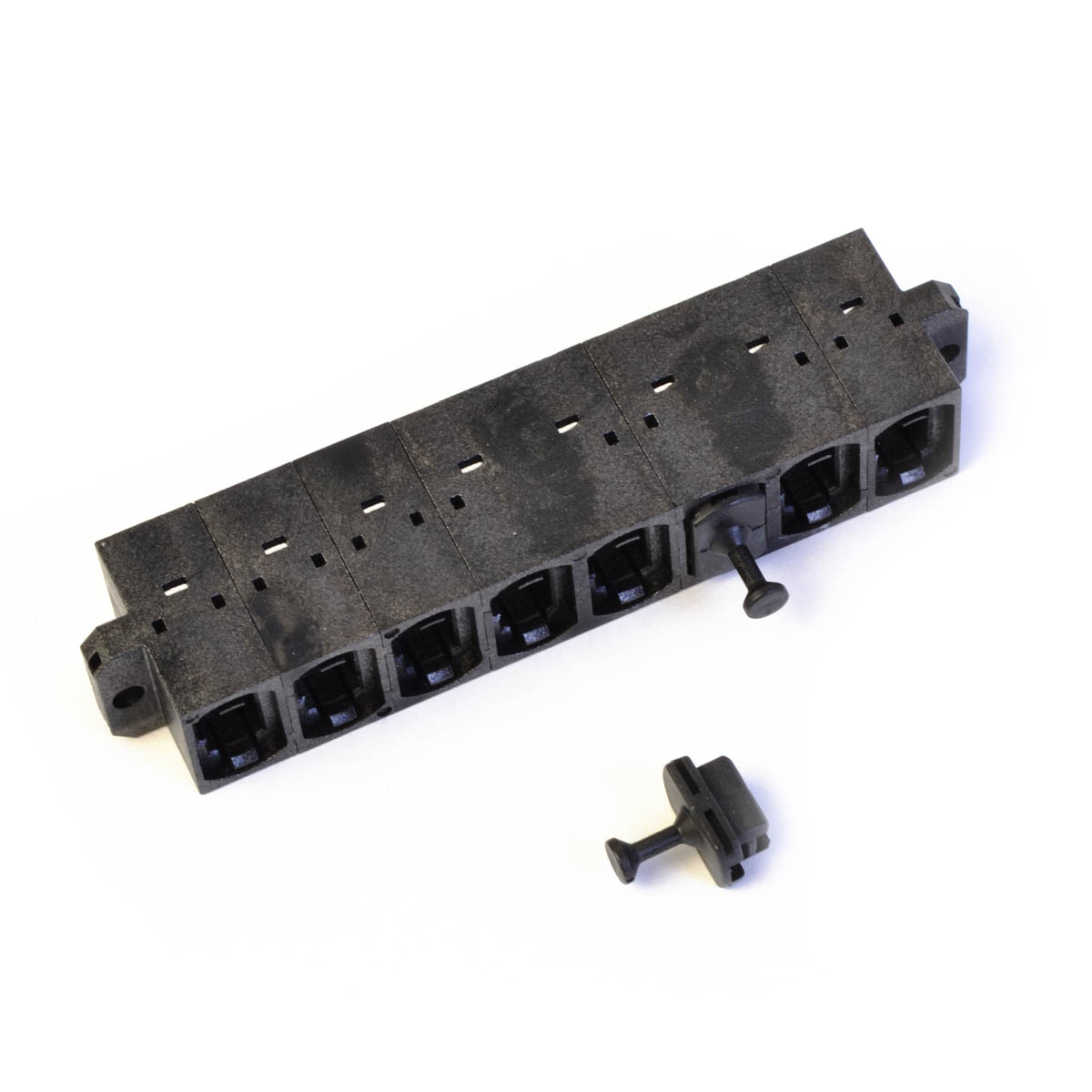

Stackable
Straight Ear MPO

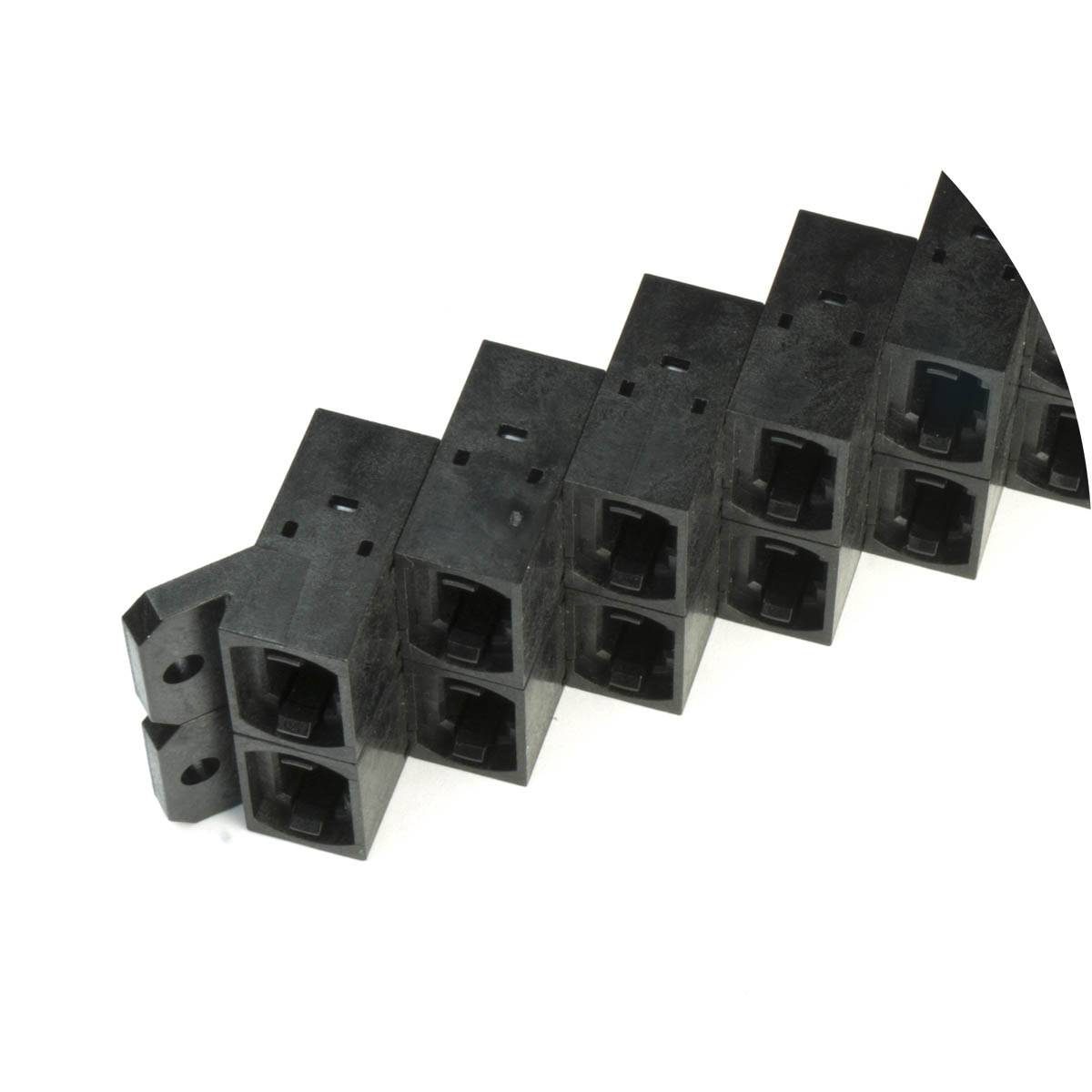

Stackable
Angled Ear MPO
Stackable

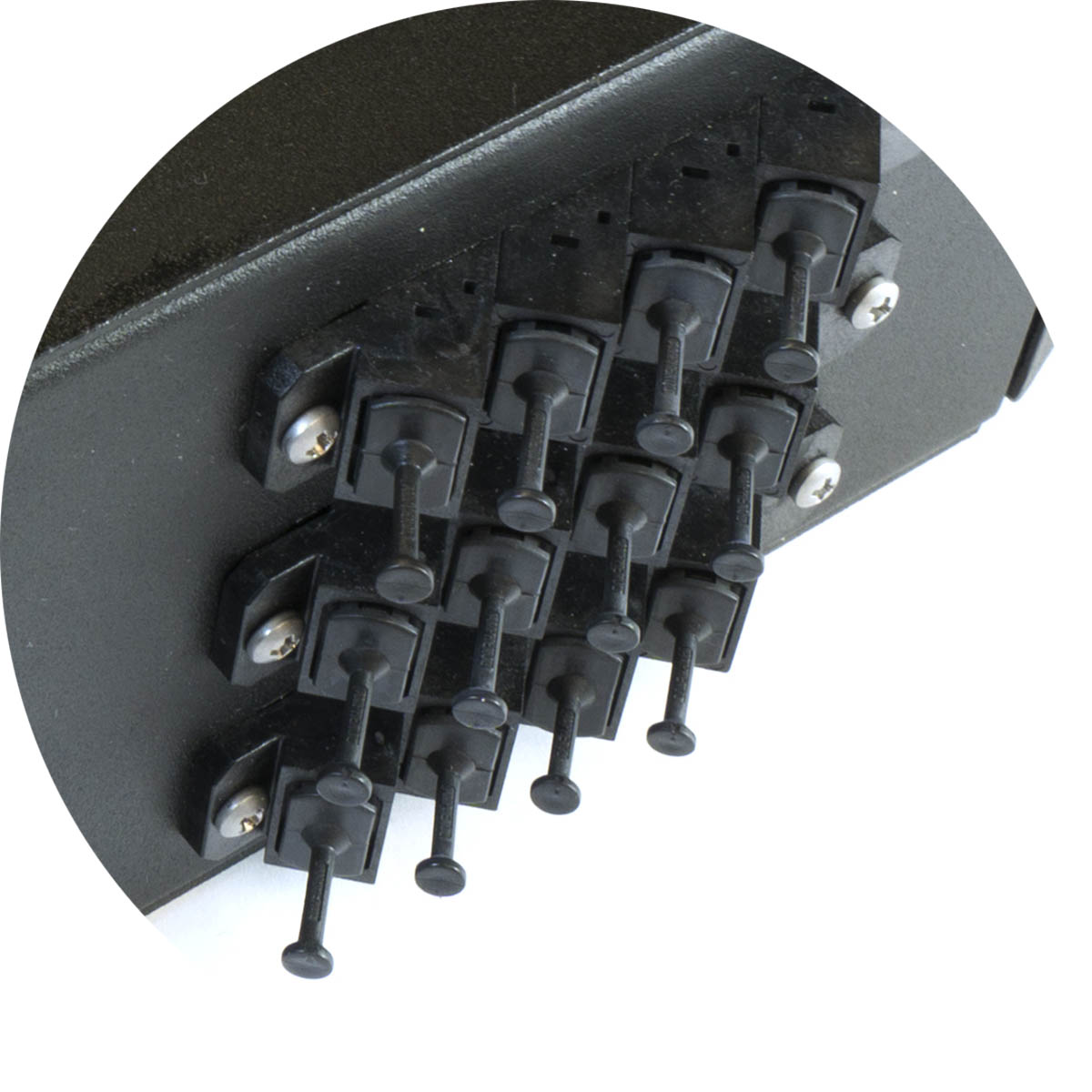

In-use on Panel Rear
