FC Connectors
Amphenol’s FC connectors effectively terminate optical fiber in a variety of network applications. The connector is secured using a threaded coupling nut, providing a significant increase in pull-out performance. The FC connector also features an internal cavity and epoxy injection tube that virtually eliminates the possibility of improper epoxy application, thus providing higher manufacturing yields.
Every aspect of the connector system is precision manufactured to produce reliable and consistent performance. The FC connector is available in tunable or non-tunable PC versions for flexibility in specific performance requirements. The FC/APC connector system features a tight-fit keyway that prohibits the possible mis-mating between FC/PC and FC/APC connectors.
-
Non-optical disconnect feature design prevents signal interruption
-
Teflon tube in rear of connector ensures clean epoxy injection
-
High precision zirconia ferrules minimize insertion loss and return loss values
-
Available in singlemode, angled singlemode, and multimode versions
-
Available with 900μm, 2.0mm, or 3.0mm, 45/90 degree, and flex boots
-
Tunable version available
-
Stainless steel ferrules also available
-
Compliant to IEC 61754-13 and TIA/EIA 604-4 specifications
-
Insertion Loss:
≤ 0.15dB Typical Singlemode
≤ 0.23dB Typical APC
≤ 0.25dB Typical Multimode
Return Loss:
Ultra (UPC) > 55dB
Angle (APC) > 65dB
Durability:
< 0.2dB change, 500 Mating Cycles
Temperature:
<0.3dB change, -40 to +85°C
IT/Datacom
TelecomSinglemode Lasers
Measuring Equipment
944-601-53202B CONN, FC, M/M 128μm CERAMIC FERR, 2MM BOOT, CRIMP, CAP
944-601-53292L CONN, FC, S/M 125.5μm CERAMIC FERR, 2MM BOOT, STEP CRIMP, CAP
944-602-50128-P CONN, FC, M/M, 128μm SS STEEL FERRULE, 3MM BOOT, CRIMP, CAP
944-602-50144-P CONN, FC, M/M, 144μm SS STEEL FERRULE, 3MM BOOT, CRIMP, CAP
FC Variations
Connector Body

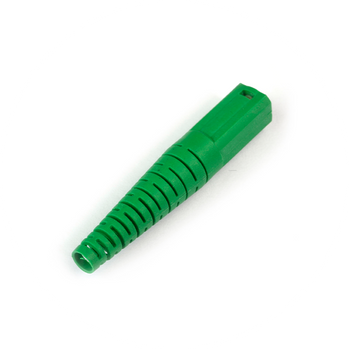

Connector Boots
