IP-FXT Housing
The Amphenol IP-FX is a sealed, outdoor feedthru housing that is designed to provide dust and water protection for assemblies mating to outdoor enclosures and transmission equipment. The IP-FX is suitable to protect several connector types including LC Duplex, RJ45, USB, and others.
The unique design of the IP-FX housing allows it to be supplied on factory terminated (tested cables) or field installed over existing cables such as LC Duplex or RJ45, making it an ideal solution for conversion from legacy systems to newer transmission equipment. IP-FX housing mates to equipment or enclosures that are pre-fitted with the FullAXS® -style receptacle, providing a water and dust sealed interface when mated. Applications include connection to Remote Radio Units (RRU/RRH), FTTA equipment and other outdoor systems.
-
Allows flexibility to use factory terminated assemblies or field installed assemblies
-
Provides superior weather resistance for harsh outdoor applications
-
Pass-thru design suitable with various industry standard connector and cable types
-
Easily installs without special tooling
-
Bayonet style coupling
-
Provides bend protection for installation and long term use
-
One handed mating, no torque requirements for proper sealing
-
-
IP67 water and dust protection
-
No installation tools required
-
Durability: 50 cycles
-
Operating temperature: -40° to 75°C
-
Cable Diameter Range: 4.8mm to 7mm
-
33 lb. axial cable retention (150N)
-
FTTA
Harsh Environments
Outdoor Areas
Small Cells
Wireless
958-5001-1 KIT, IP-FX CONNECTOR, FIELD FOR 4.8-6.0MM CABLE
958-5001-2 KIT, IP-FX CONNECTOR, FIELD FOR 6.0-8.0MM CABLE
Key Features

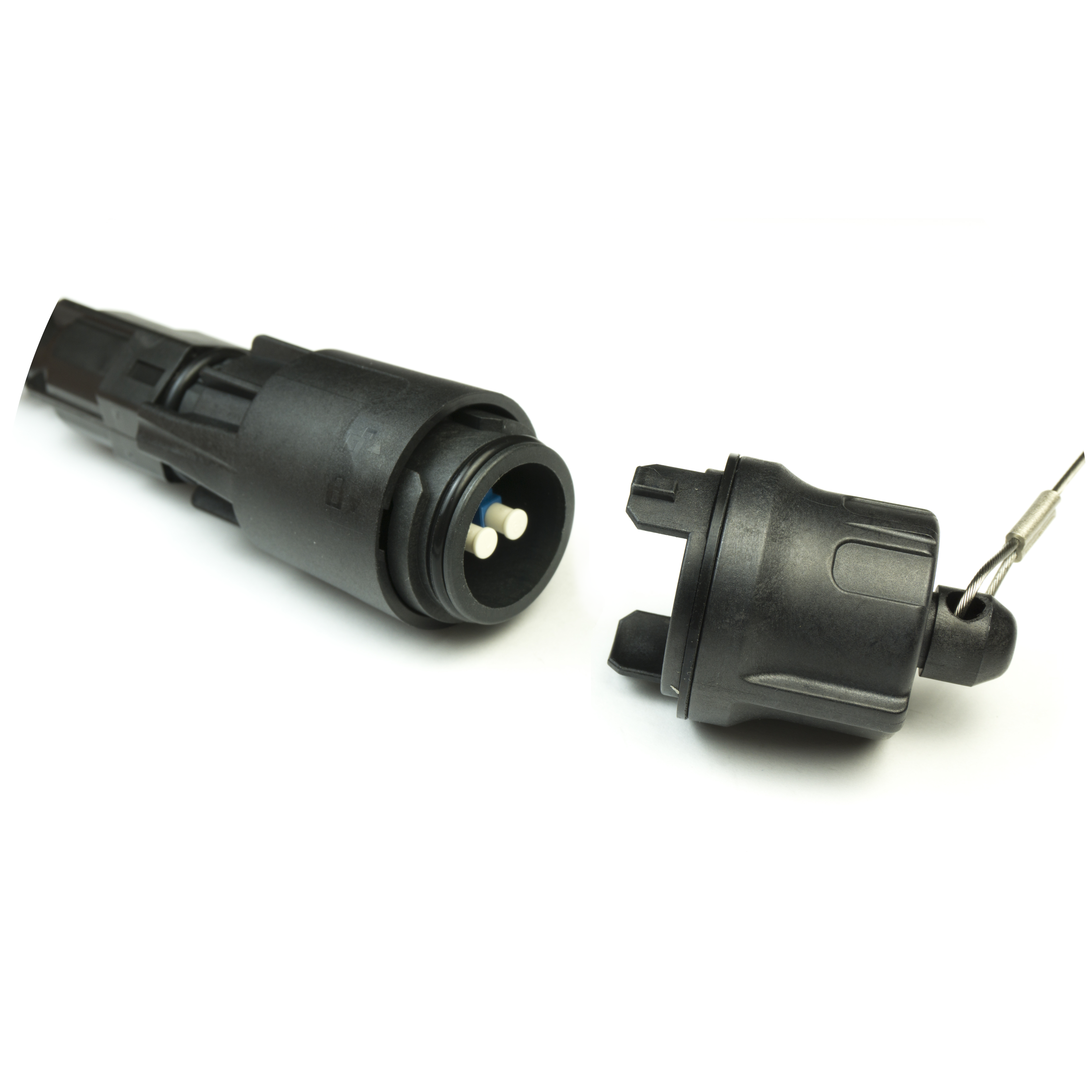

IP-FX
Housing with LC Jumper

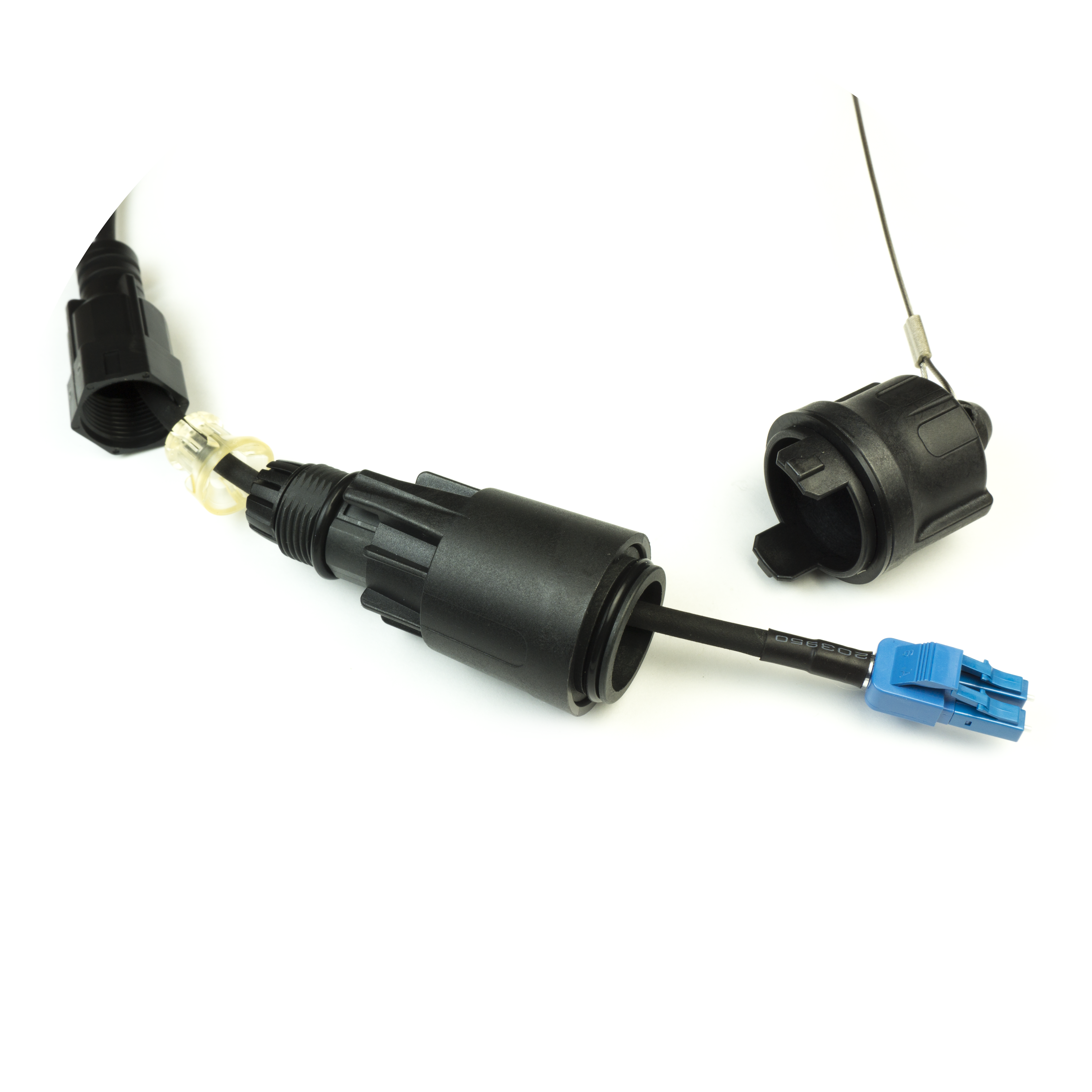

IP-FX
Dissected Housing with LC Jumper
IP-FX
Housing
IP-FX
Field-install Kit

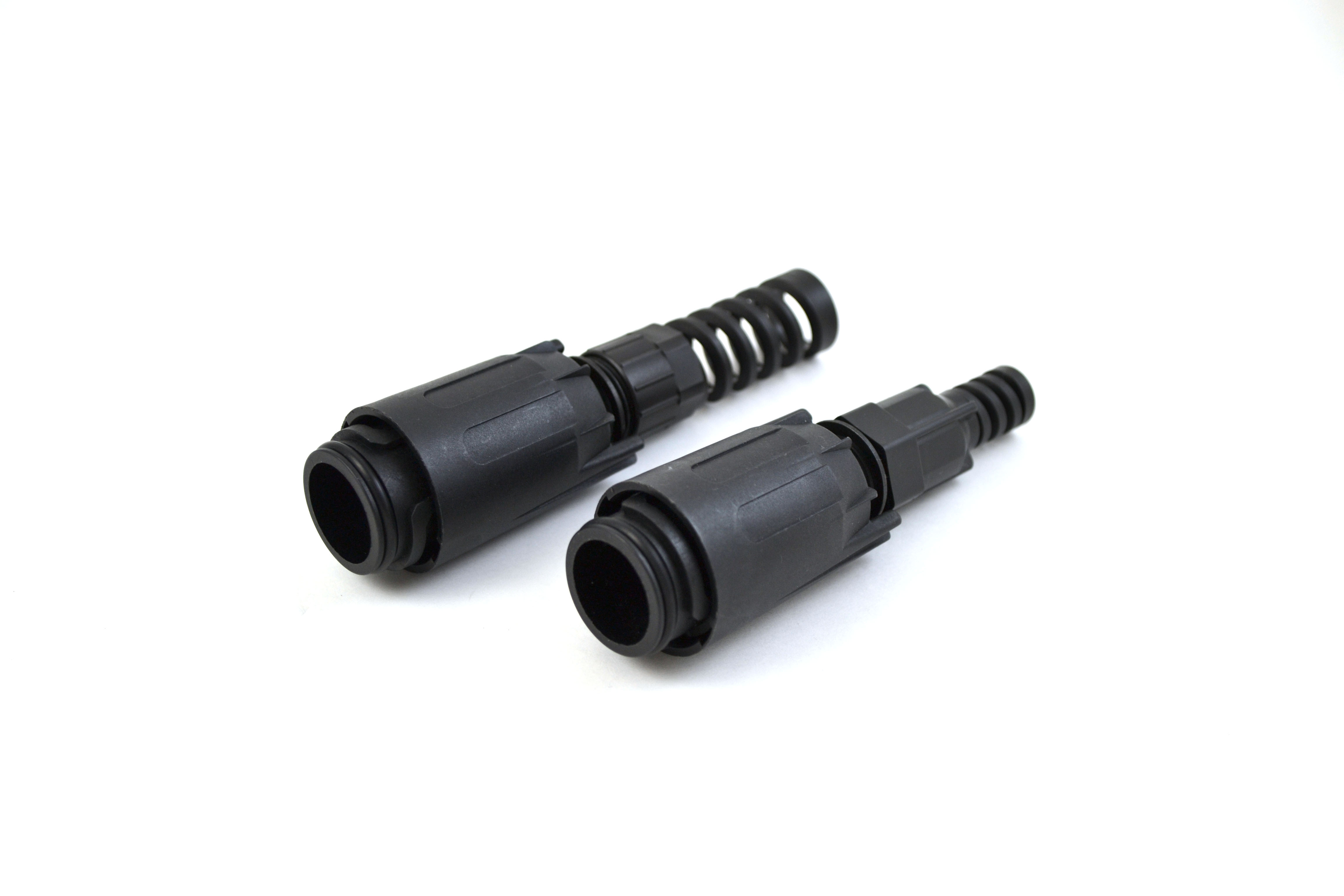

IP-FX
Housing Types
IP-FX
Housing Side-view with Cap
