J-Connector Housing
The Amphenol optical J-connector housing is designed for optical connectivity to outdoor installed electronics. Using a ‘Direct Connect’ topology, the J-Connector accepts either SFP or SFP+ pluggable transceivers, effectively transforming the passive optical assembly into an active, electrical interface. This connection method allows quick and easy replacement of the optics and allows re-configuration for upgrades.
The field installable version can be installed over an existing outdoor simplex or duplex LC assembly for applications requiring on-site or local assembly manufacturing. The J-Connector optical bulkhead receptacle is designed to accept any MSA compliant SFP or SFP+ transceiver, providing both an IP67 grade water and dust ingress protection as well as grounding to the panel/cage for improved EMI shielding.
-
Allows flexibility to use factory terminated assemblies or field installed assemblies.
-
Provides superior weather resistance for harsh outdoor applications
-
Ensures functionality in harsh weather environments
-
Pass-thru design suitable with LC connectors
-
Accepts any MSA compliant SFP or SFP+ transceiver
-
Bayonet style coupling
-
Provides bend protection for installation and long term use
-
-
Two fiber, LC-based connector
-
IP67 water and dust protection
-
No installation tools required
-
50 minimum mating cycles
-
Operating temperature: -40° to 75°C
-
Durability: 50 cycles
-
FTTA
Harsh Environments
Outdoor Areas
Small Cells
Wireless
942-98363-10001 JUMPER, J-CONNECTOR TO 2F AARC, 1M
942-98364-10001 JUMPER, J-CONNECTOR TO LC (D), 1M942-98365-10001 JUMPER, J-CONNECTOR TO LC SIMPLEX, 1M
Key Features

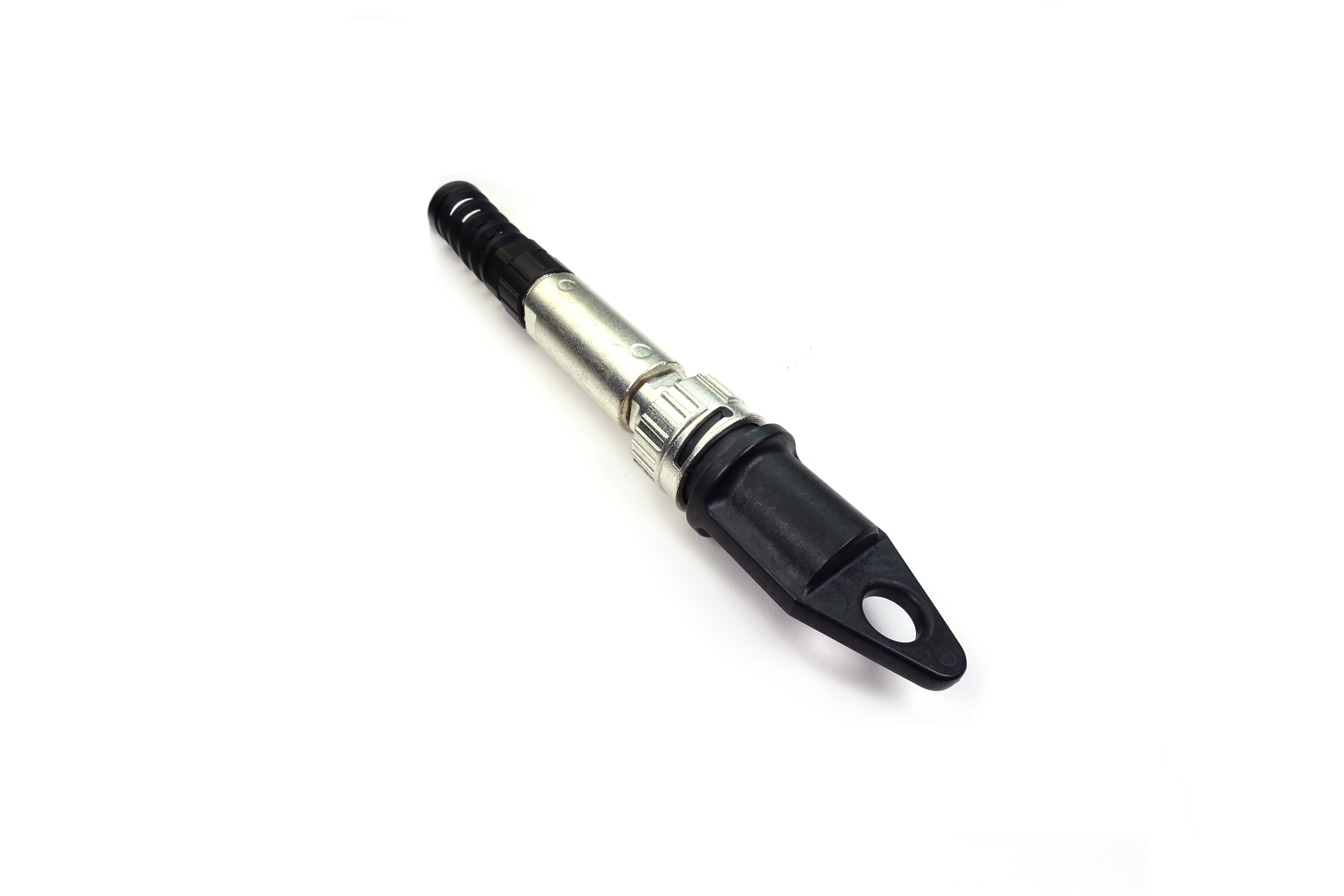

J-Connector
Housing with Cap
J-Connector
Housing with LC Connector
J-Connector
Field and Factory Installable
J-Connector
Housing Side-view without Cap

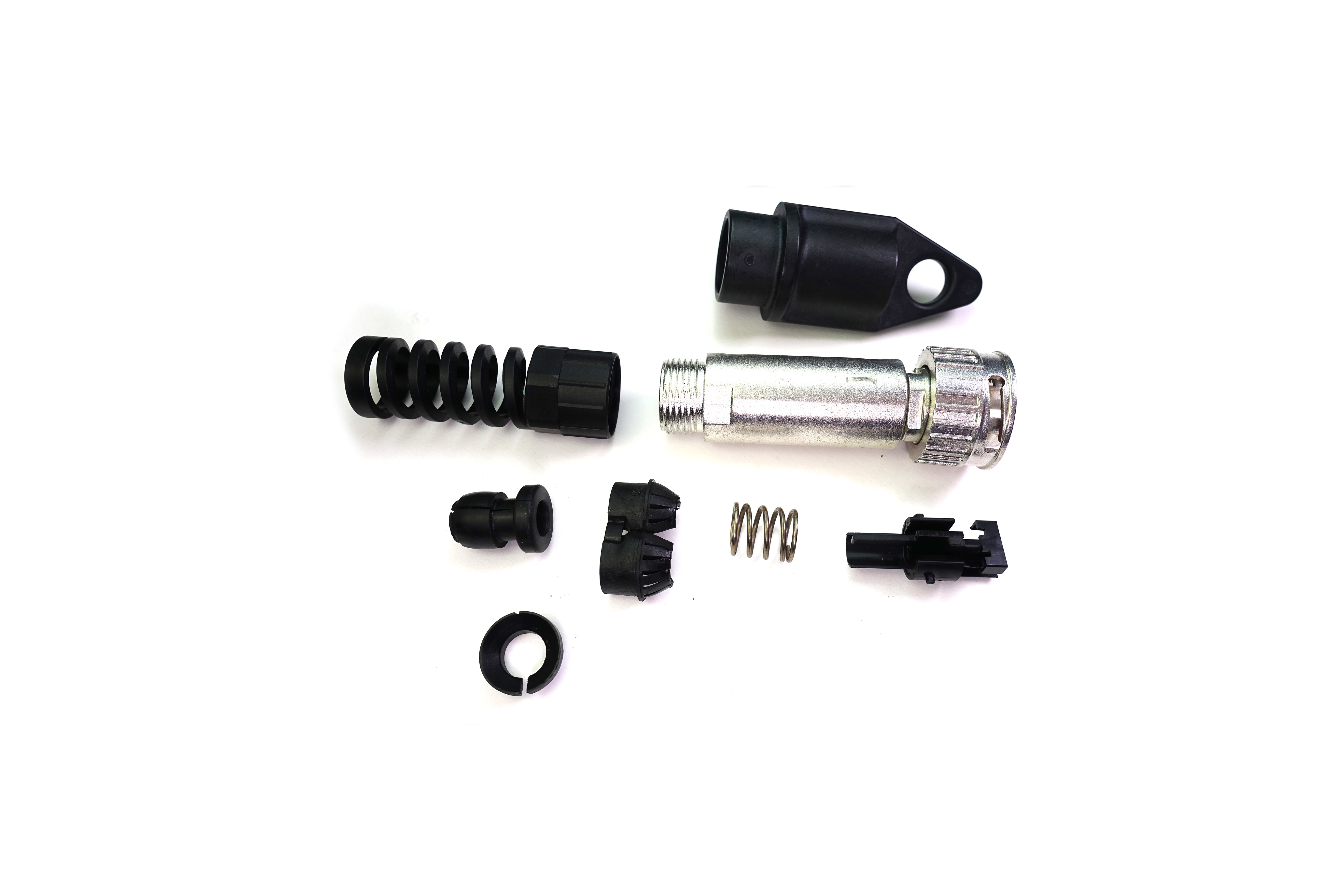

J-Connector
Field-install Kit
J-Connector
Receptacles
