Amphenol LC fiber optic connector for high-performance, low-loss single-mode and multimode fiber connections

LC Connectors

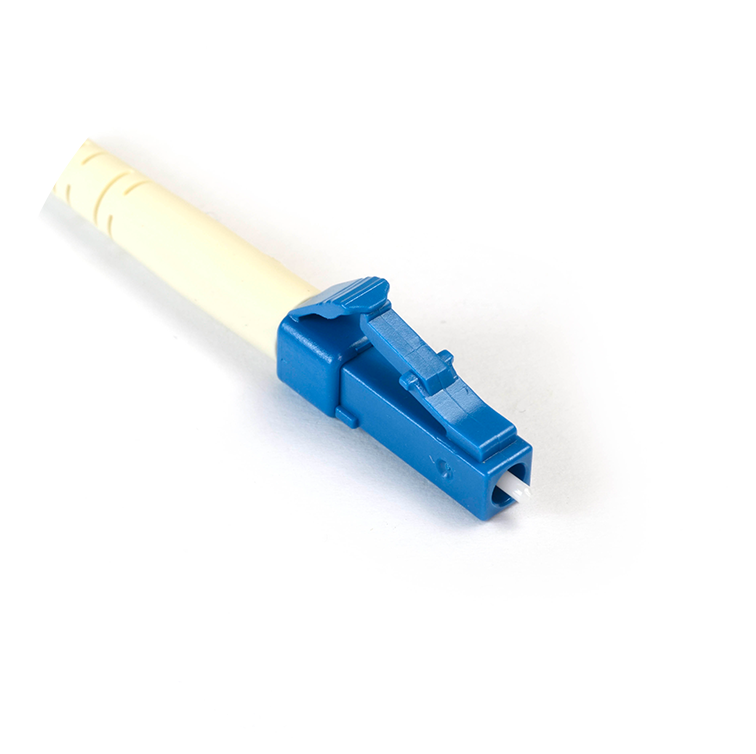

Amphenol’s fiber optic LC small form factor (SFF) connectors utilize the familiar RJ-45 latching mechanism. The LC provides great space savings in the network. With accelerated growth demanding greater bandwidth in less physical space, LC connectors have been established as the connector of choice for high density patch panels and installations. Amphenol’s LC connectors are an easy-to-use, low-cost solution without any sacrifice of performance. Amphenol LC connectors are compliant to EIA/TIA-604-10 and IEC 61754-20.

Easy RJ45 coupling mechanism enables quick installation and the audible click signifies when connector is locked in place

Pull-proof design prevents signal interruption

Small form factor size enables increased density compared to standard connector

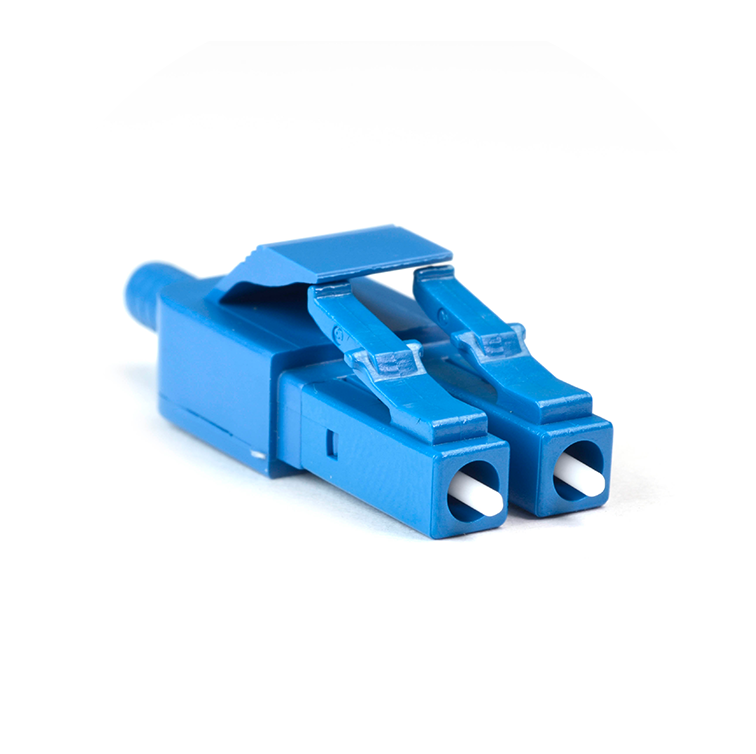

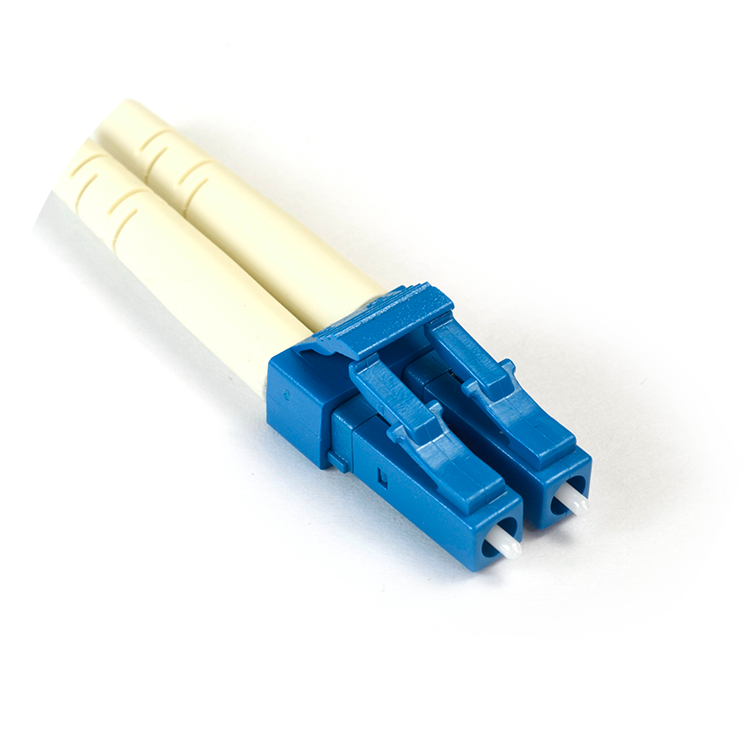

Duplex version utilizes a removable flexible clip providing a float between channels A and B

Singlemode and multimode versions

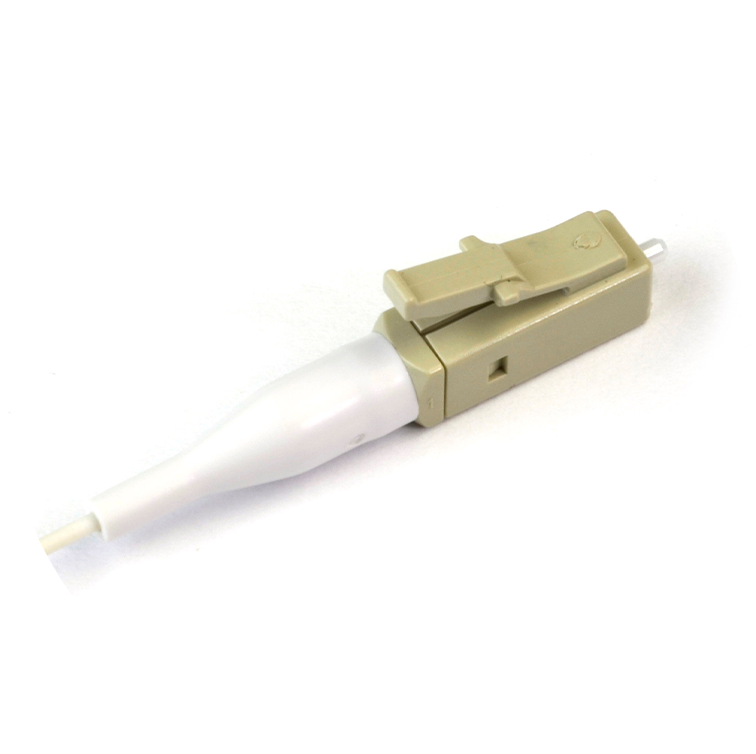

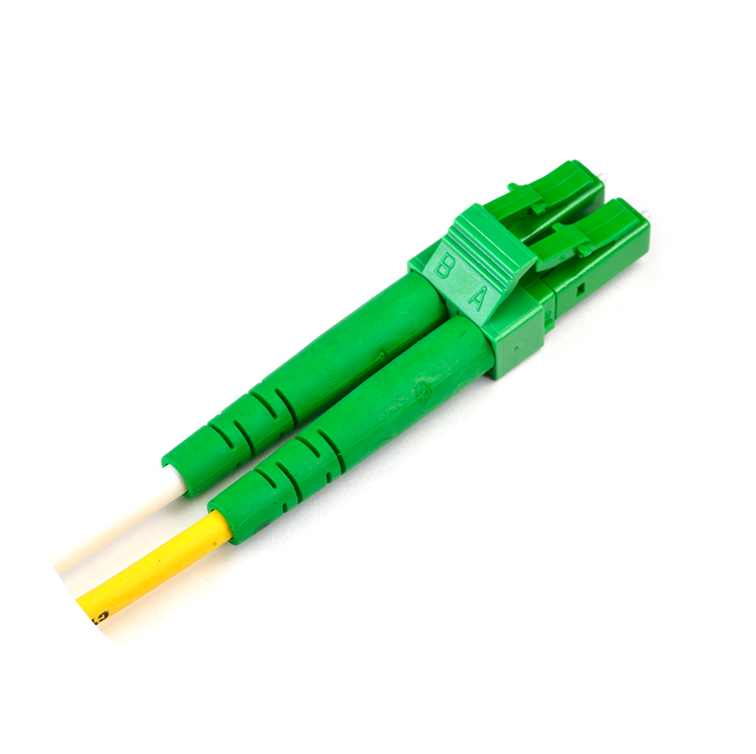

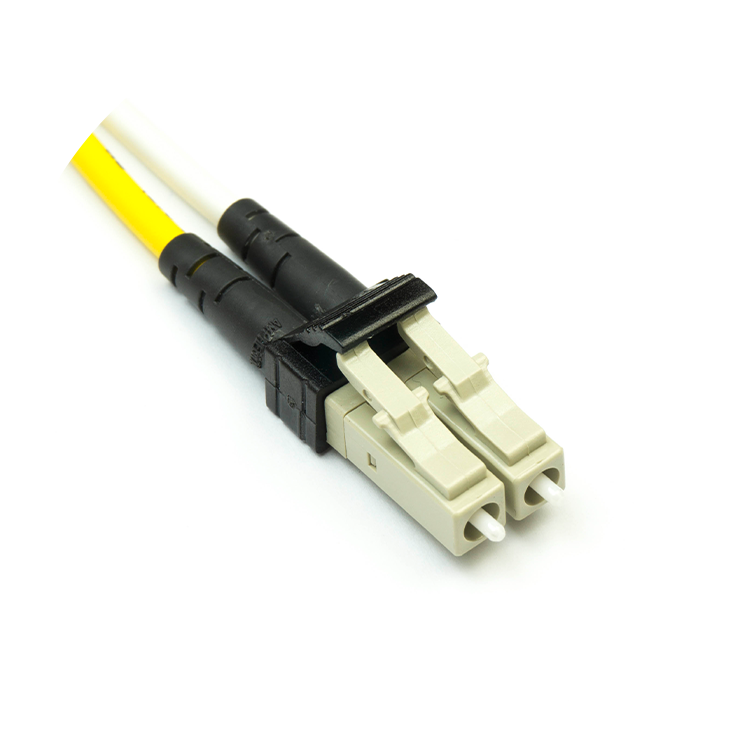

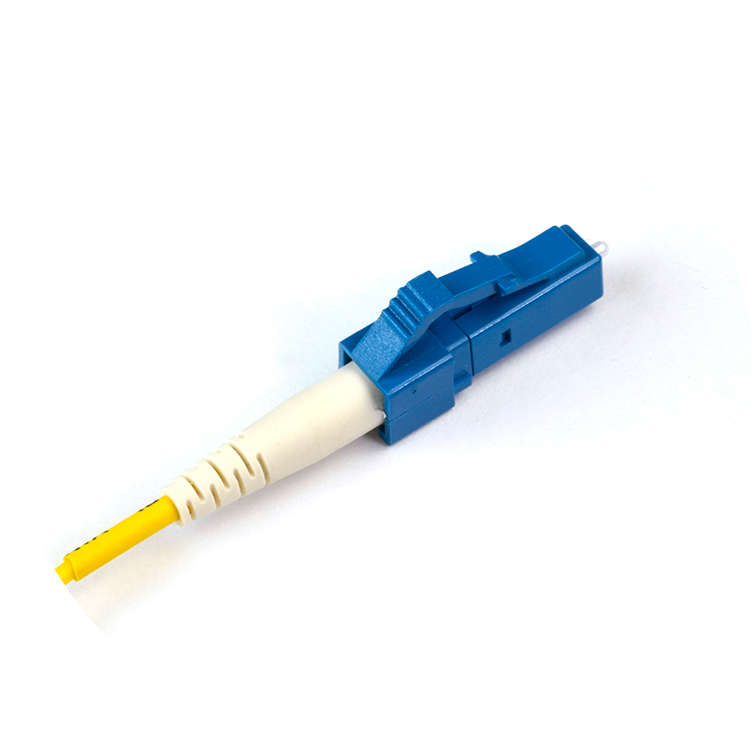

Available with 900μm, 900μm Behind the Wall (BTW), 1.2mm, Micro, 1.6/2.0mm, or 3.0mm boots

Multiple boot color options

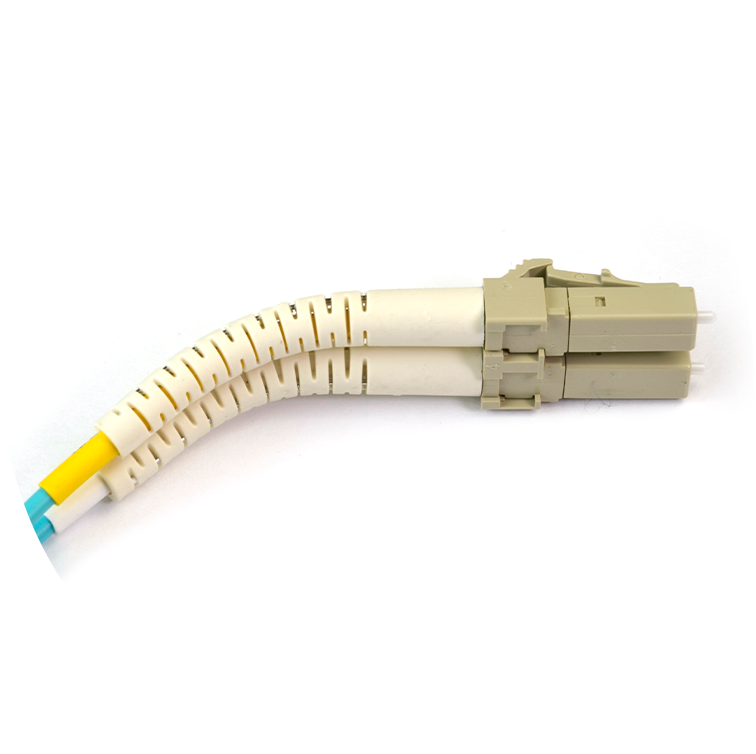

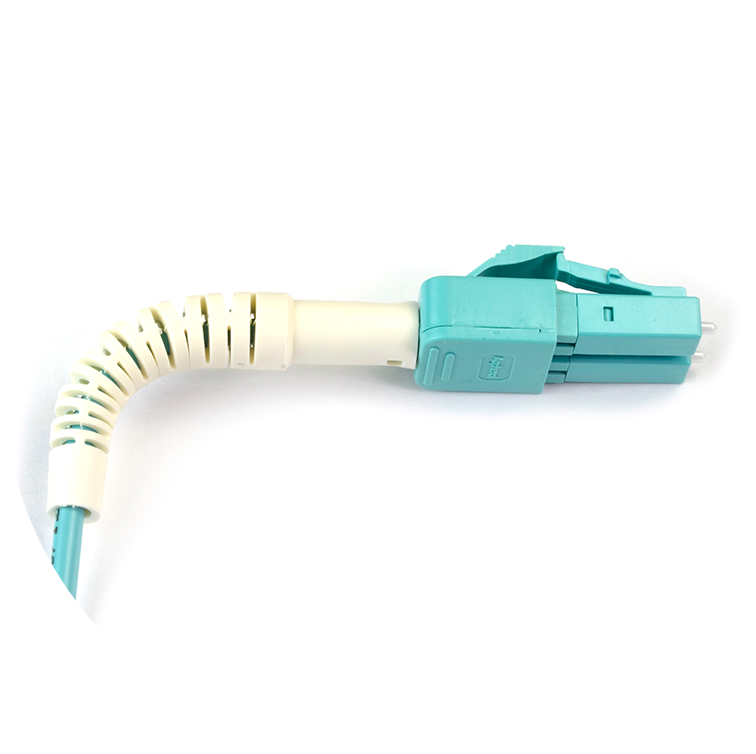

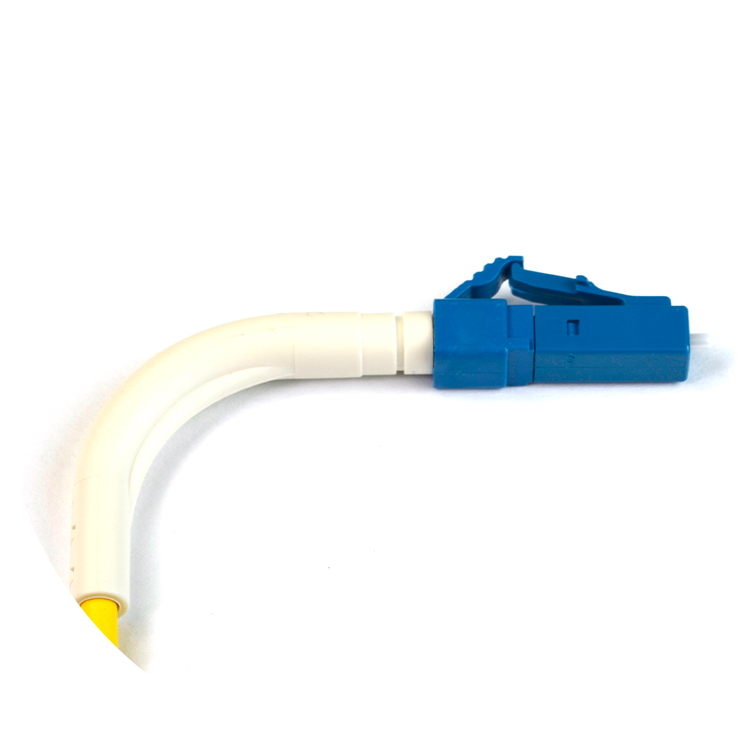

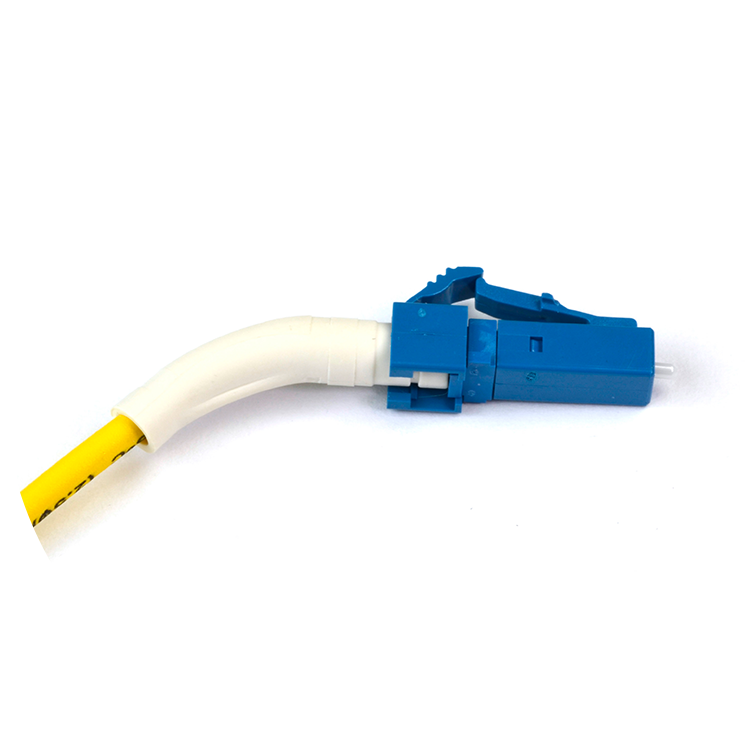

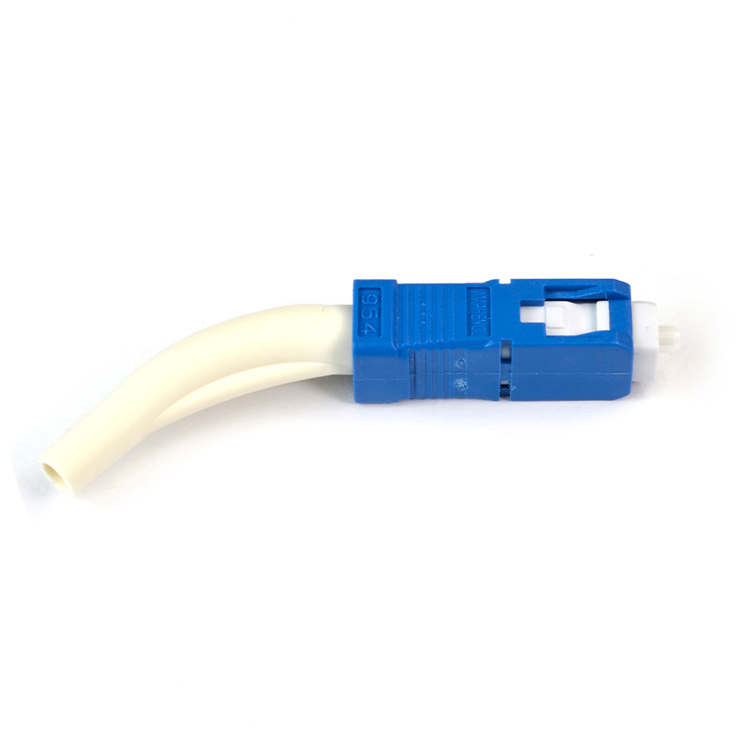

Angled boots also available (50°, 90°, and flexible boot from 0° to 90°)
Insertion Loss:

≤ 0.15dB Typical Singlemode

≤ 0.50dB Typical Multimode

Return Loss:

Ultra (UPC) > 55dB

Durability:

< 0.2dB change, 500 Mating Cycles

Temperature:

<0.3dB change, -40 to +85°C

Durability:

50 Mating Cycles
Data Centers

IT/Datacom
Telecom
Wireless
956-332-500314 CONN, LC SIMPLEX, M/M, 127μm FERRULE, BEIGE, WHITE BOOT, 3MM
956-331-590314   CONN, LC SIMPLEX, S/M, 125.5μm FERRULE, BLUE, WHITE BOOT, 3MM
956-332-500214   CONN, LC SIMPLEX, M/M, 127μm FERRULE, BEIGE, WHITE BOOT, 2MM
956-342-500924   BTW CONN, LC SPLX, M/M, 127μm FERRULE, BLUE, WHITE BOOT, 900μm

956-322-502314   CONN, LC DUPLEX, M/M, 127μm FERRULE, BEIGE, WHITE BOOT, 3MM

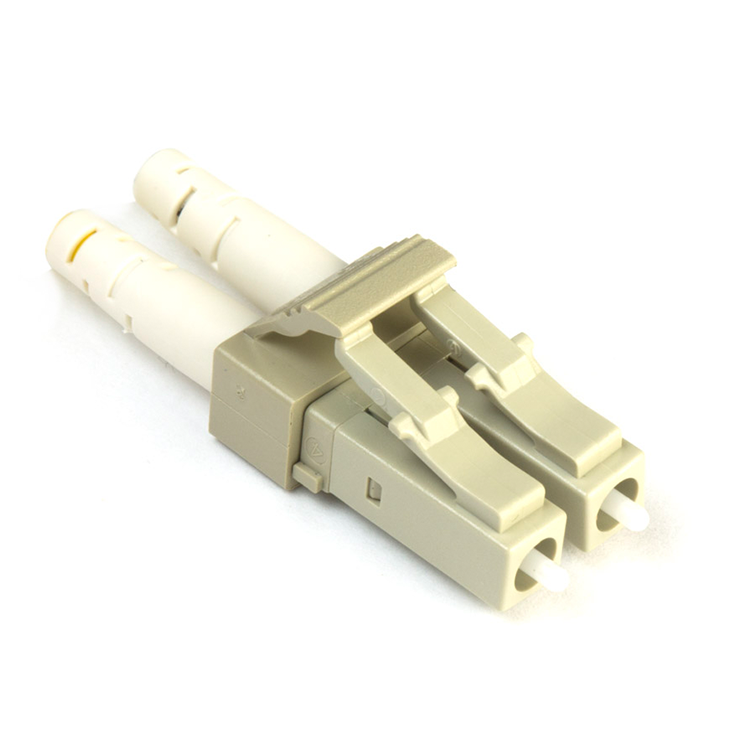

956-302-500304   CONN, LC MICRO SIMPLEX, M/M, 127μm FERRULE, BEIGE, 3MM

956-332-5002F4   CONN, LC SIMPLEX, M/M, 127μm FERRULE, BEIGE, FLEX BOOT, 2MM
