MPO Connector Amphenol that provides high density connections for the expanding datacom market space

MPO Connectors

Amphenol manufactures a comprehensive line of MPO connectors that provides high density connections for the expanding datacom market space. A variety of boot and accessory options are available to assist with cable routing and end customer installation. Amphenol MPO connectors are RoHS compliant and meet TIA/EIA 604-5 and IEC 61754-7 intermateability standards.

    • Available for a wide variety of cable designs and sizes

    • Available for Singlemode and Multimode fiber types

    • 12 and 24 fiber count options

    • Standard and low-loss versions available

    • Variety of boot options including: Flex, 45° and 90°, ribbon, 3.0mm, and 2.0mm

  • Insertion Loss:

    ≤ 0.75dB Typical Singlemode
    ≤ 0.35dB Low-loss Singlemode
    ≤ 0.50dB Typical Multimode
    ≤ 0.35dB Low-loss Multimode

    Return Loss:

    Singlemode (APC) > 55dB

    Durability:

    50 Mating Cycles

  • IT/Datacom
    Data Centers
    Wireless

  • 955-400-5C108        CONN, MPO, M/M, FEMALE, AQUA, 3MM ROUND, 12F, BLACK BOOT

    955-400-53108         CONN, MPO, S/M, FEMALE, GREEN, 3MM ROUND, 12F, BLACK BOOT

    955-410-5C108        CONN, MPO, M/M, MALE, AQUA, 3MM ROUND, 12F, BLACK BOOT
    955-410-53108         CONN, MPO, S/M, MALE, GREEN, 3MM ROUND, 12F, BLACK BOOT

Datacenter Connection Solutions.jpg

MPO Variations

Fiber Count

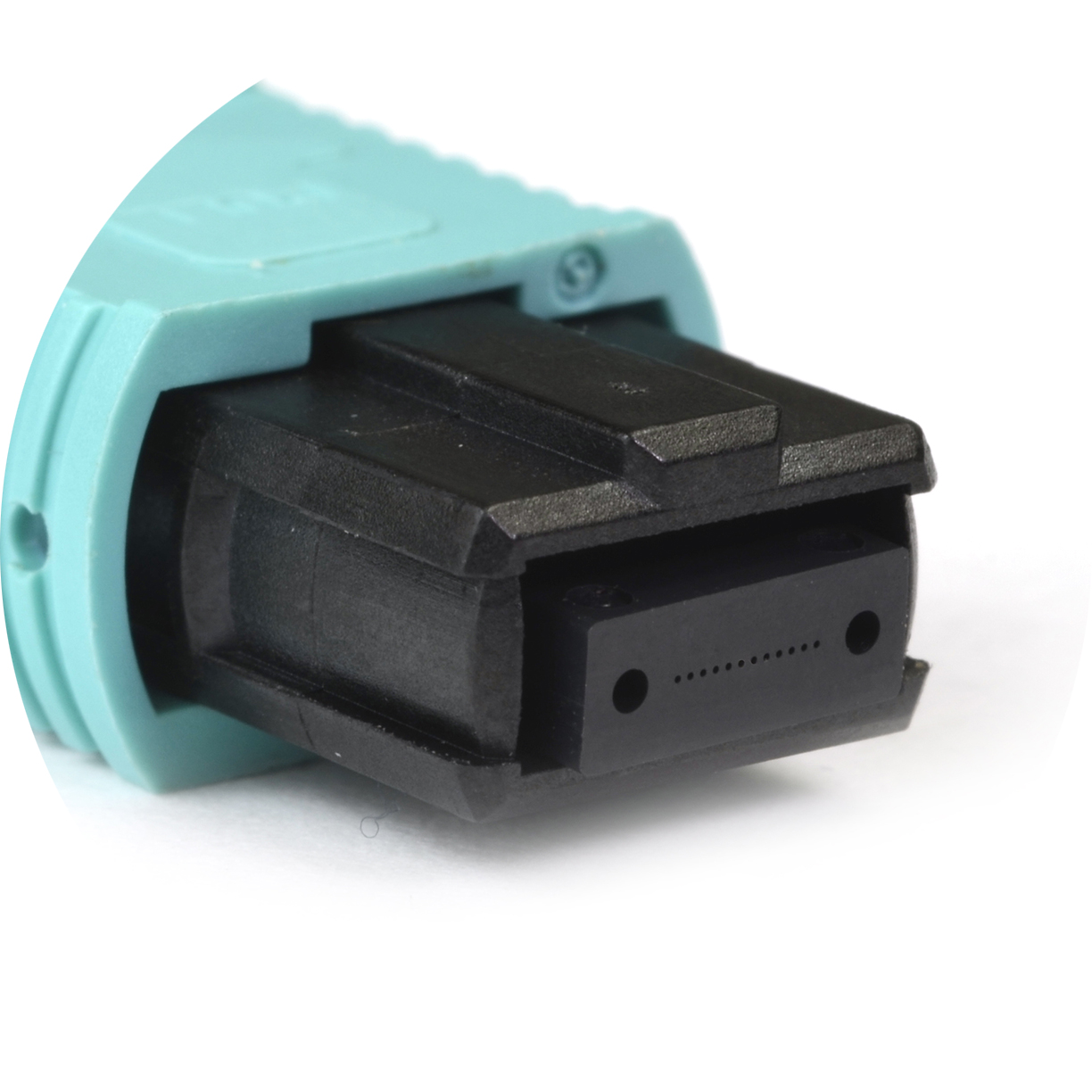

MPO 12 Fiber Connector.jpg

12 Fiber

MPO 24 Fiber Connector.jpg

24 Fiber

Cable Type

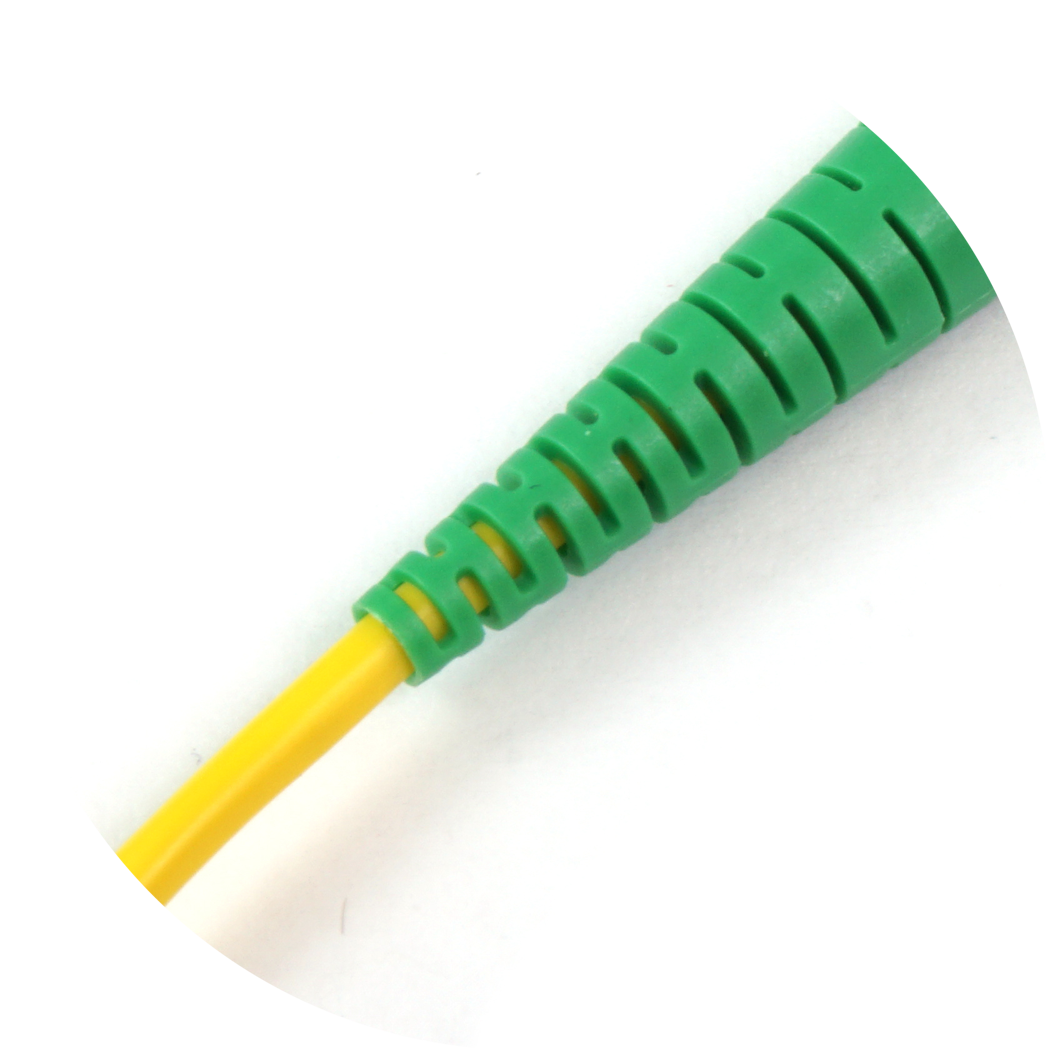

Round Cable type.png

Round Cable

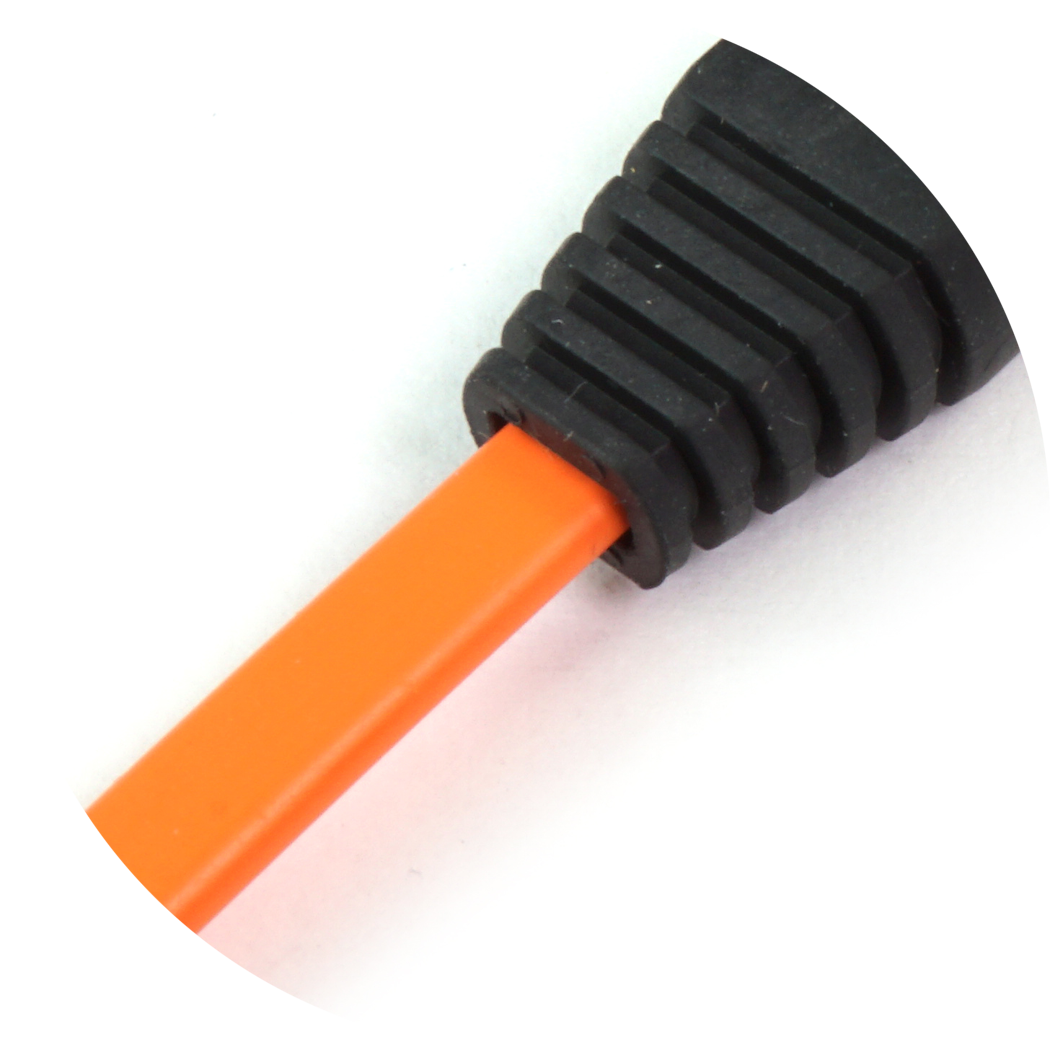

Ribbon cable type.png

Ribbon Cable

Boot Type

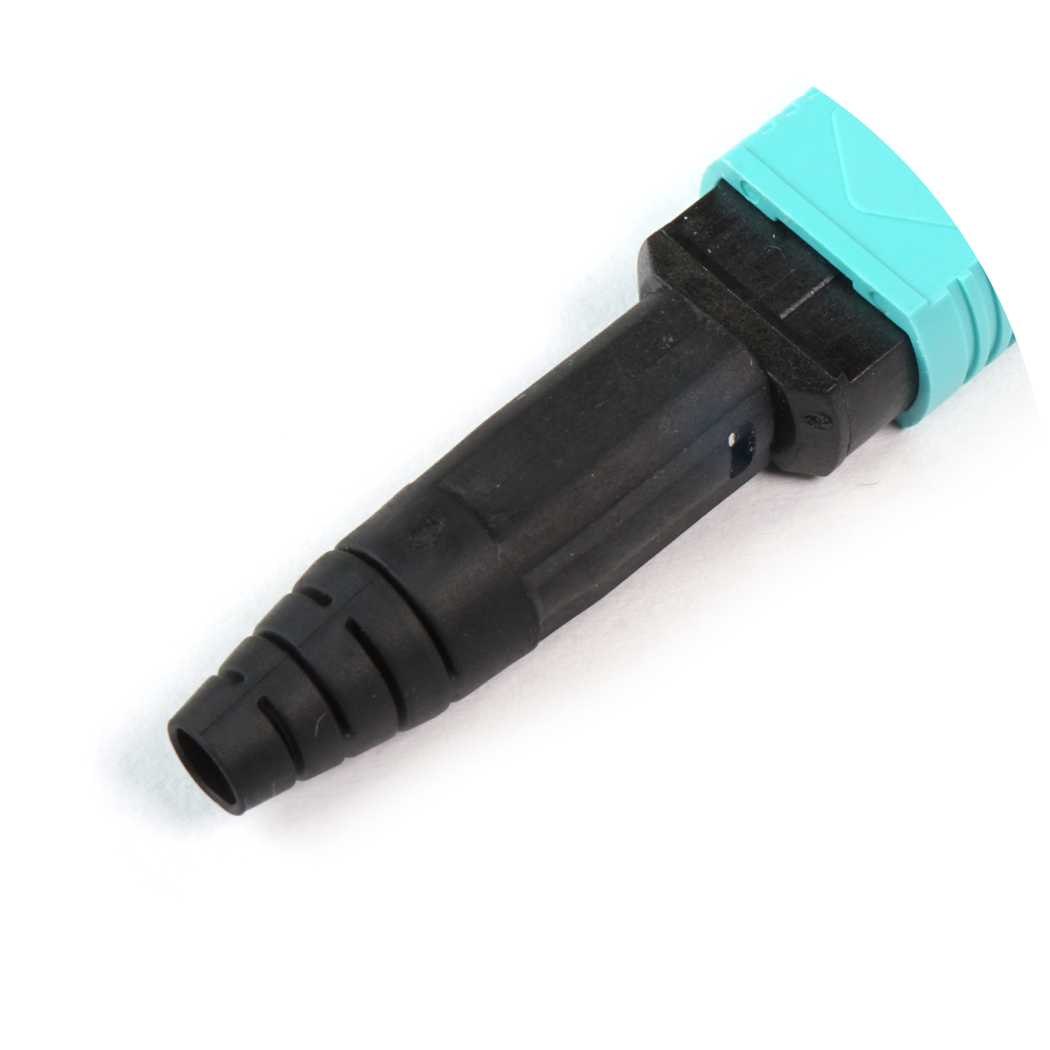

Standard boot type.png

Standard

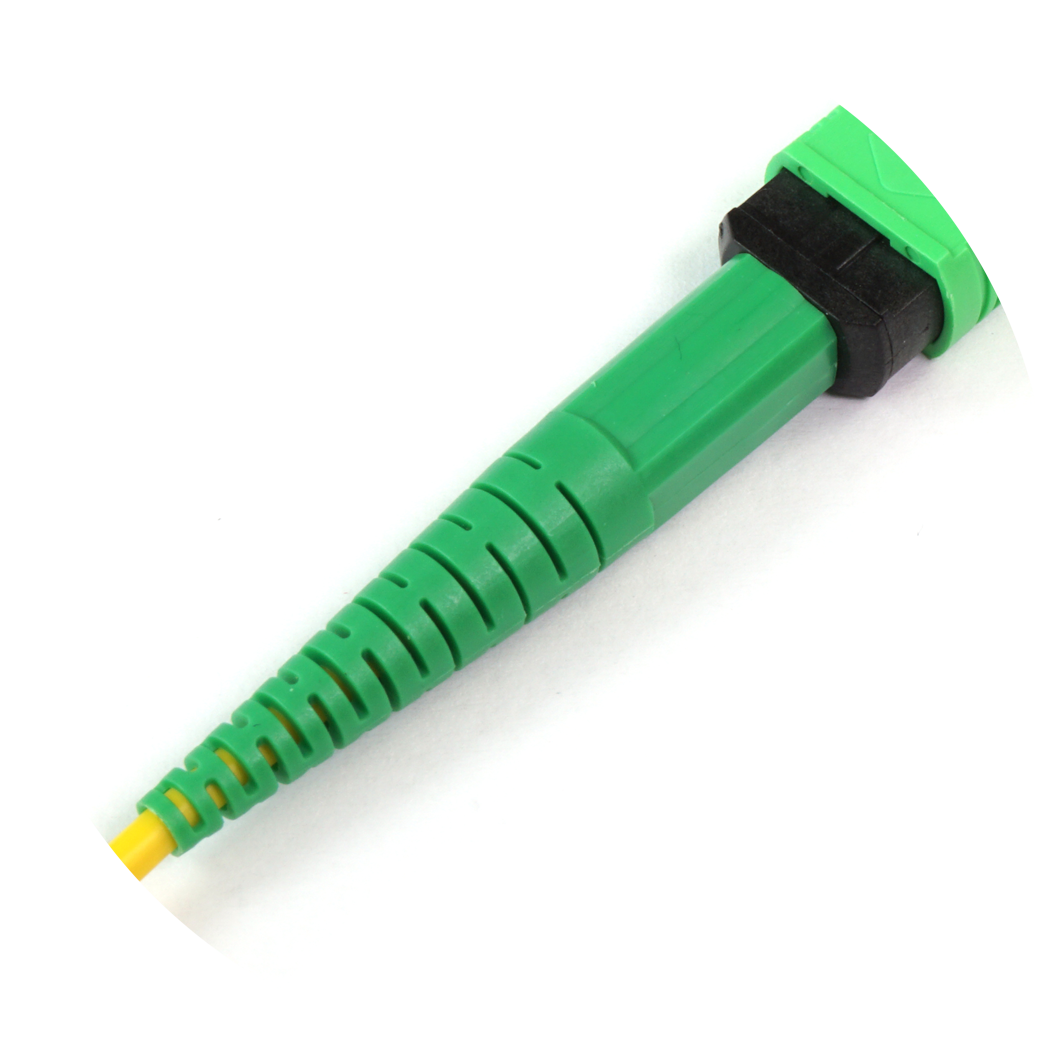

2.0mm boot type.png

2.0mm

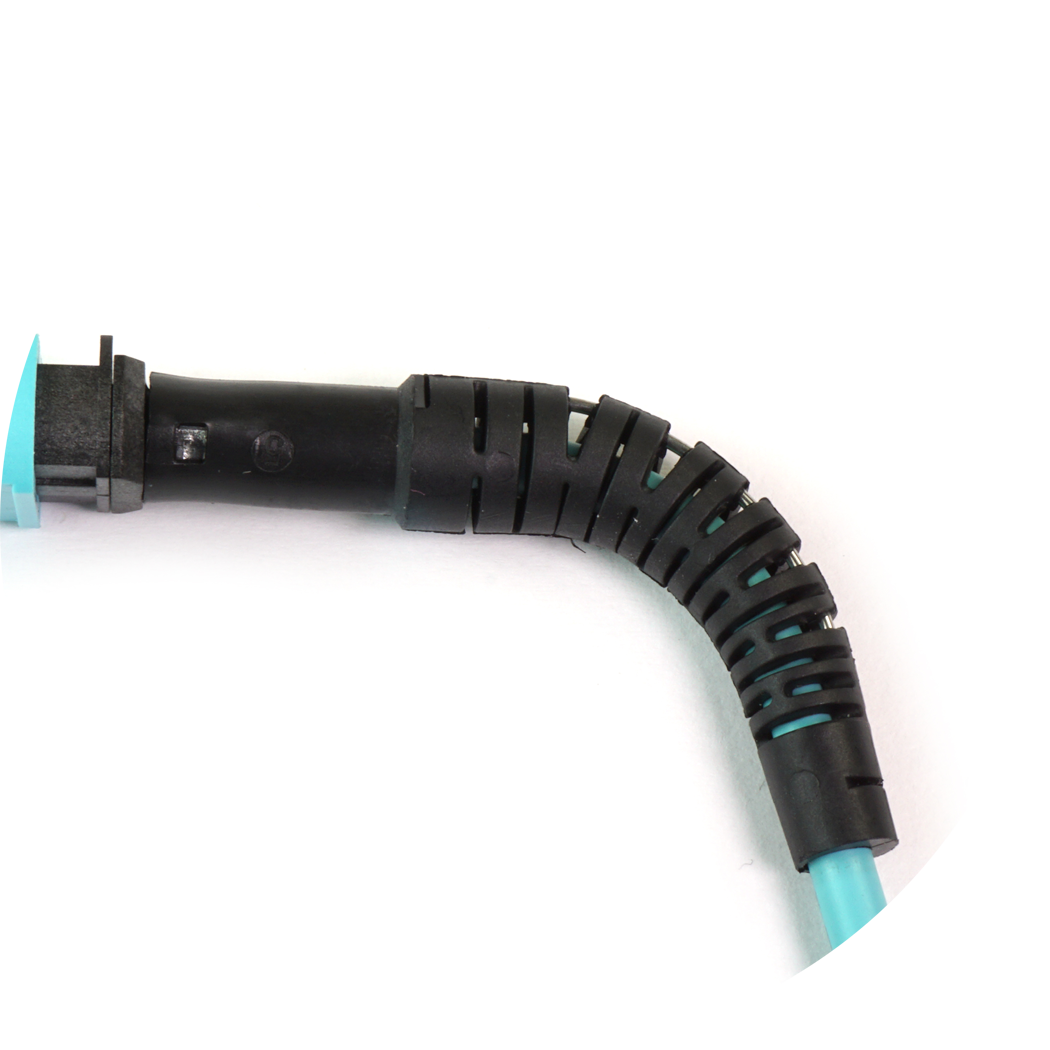

Flex Boot type.png

Flex Boot

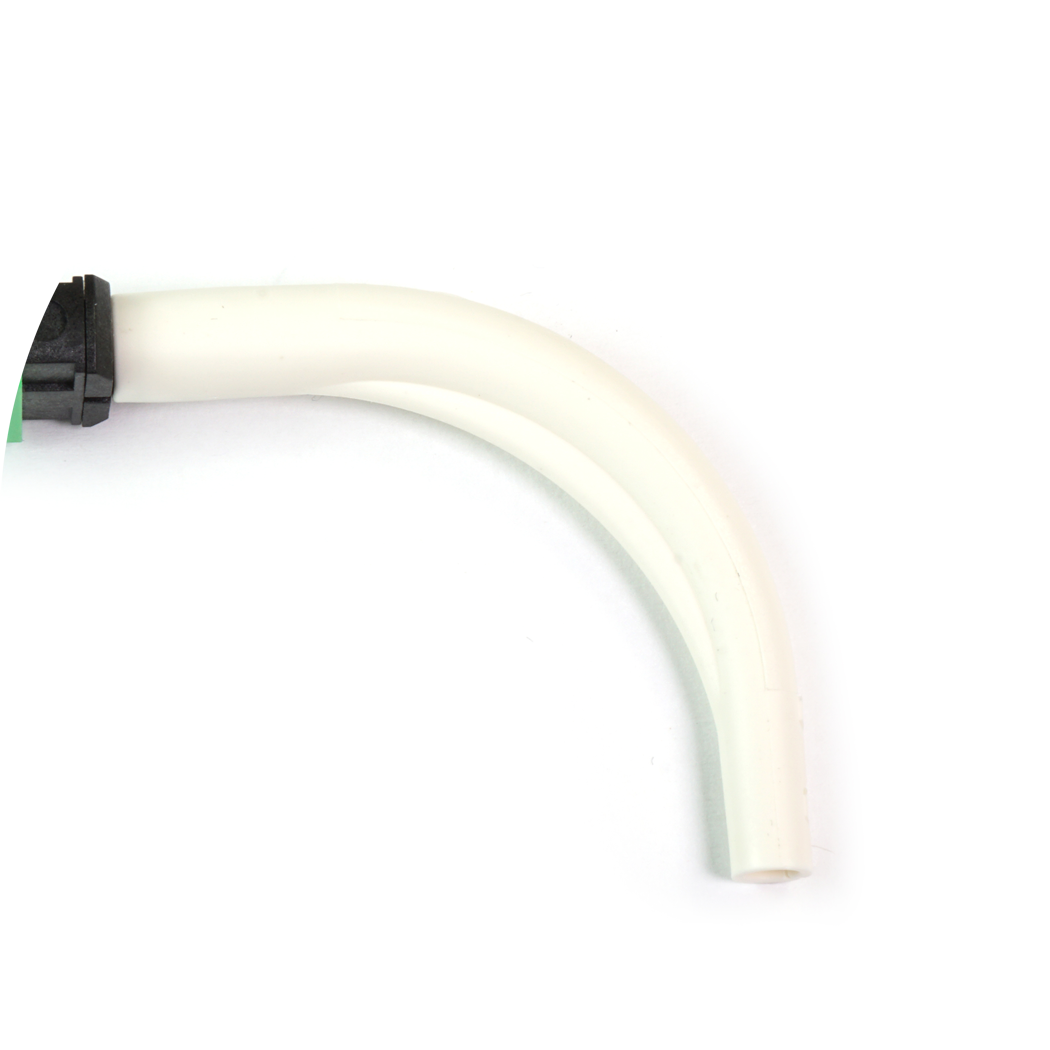

90 boot type.png

90°

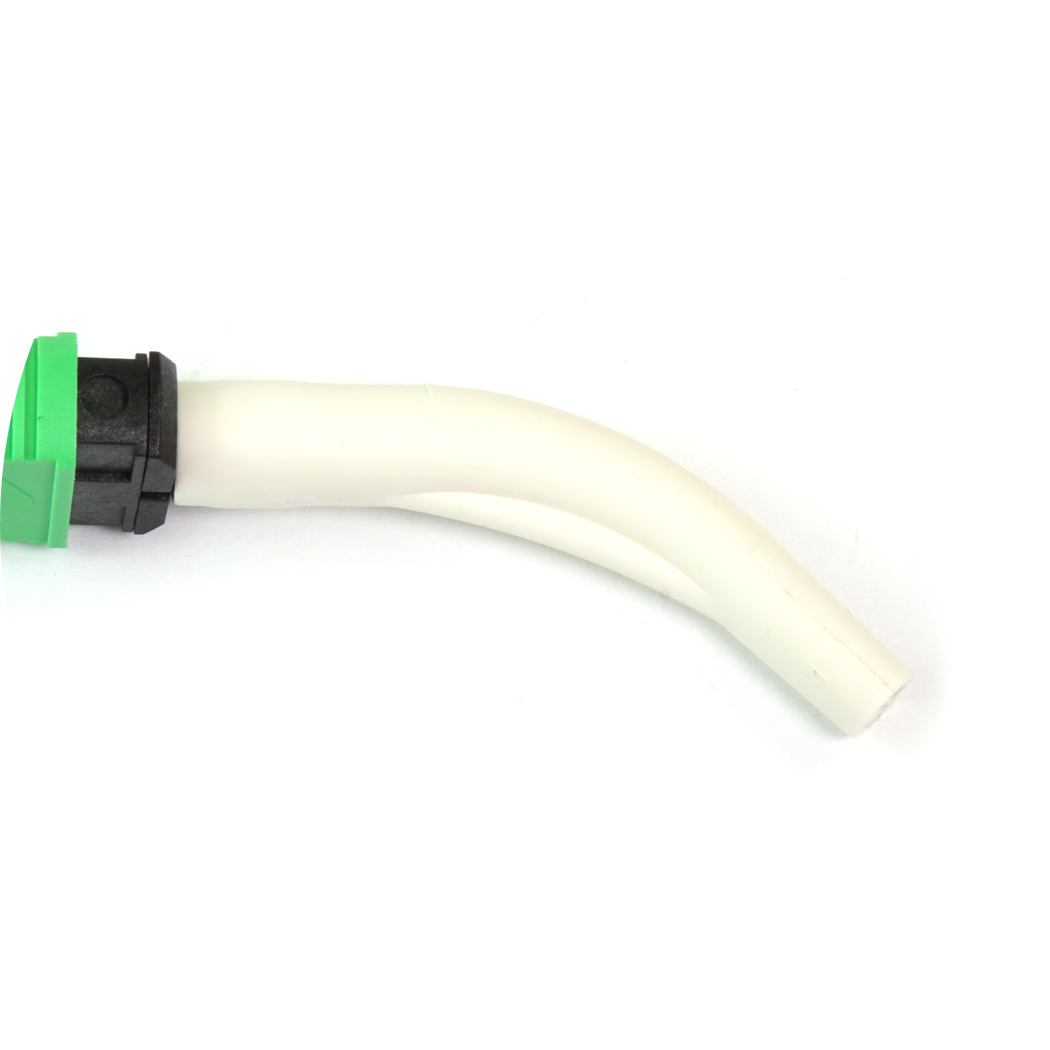

45 boot type.png

45°
