SC Connectors

Amphenol’s premier high-performance fiber optic SC connector utilizes a push/pull retention feature enabling easy insertion and removal, making it ideally suited for standard applications. The SC connector features an internal cavity and epoxy injection tube that virtually eliminates the possibility of improper epoxy application, thus providing higher manufacturing yields and superior quality. Amphenol’s SC connectors are compliant to EIA/TIA-604-3, IEC 61754-4, and fully tested by a third party test lab per Telcordia GR-326 CORE specifications.

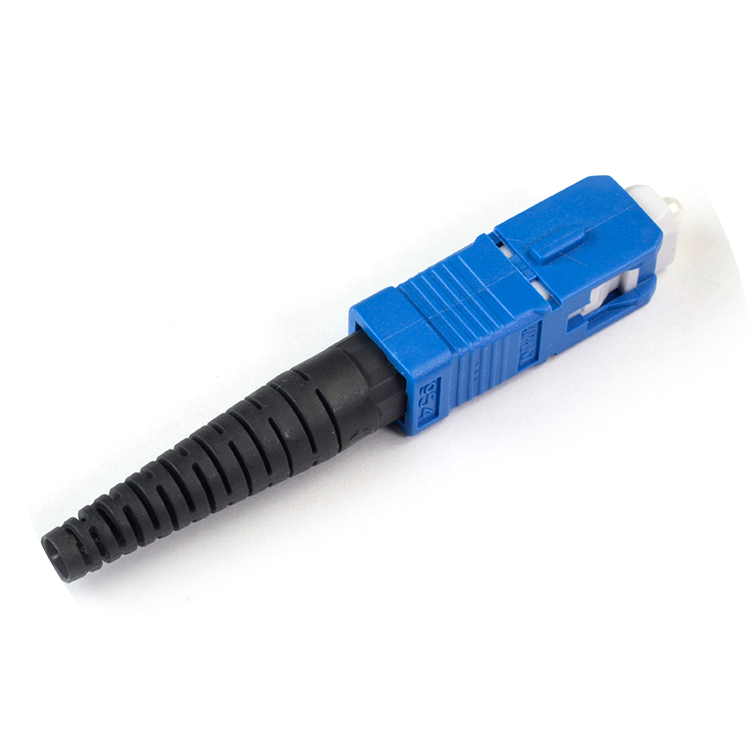

    • Third party tested per Telcordia GR-326 CORE

    • Pull proof design prevents signal interruption

    • Easy push pull coupling mechanism enables quick installation and the audible click signifies when connector is locked in place

    • Teflon tube in rear of connector insures clean epoxy injection

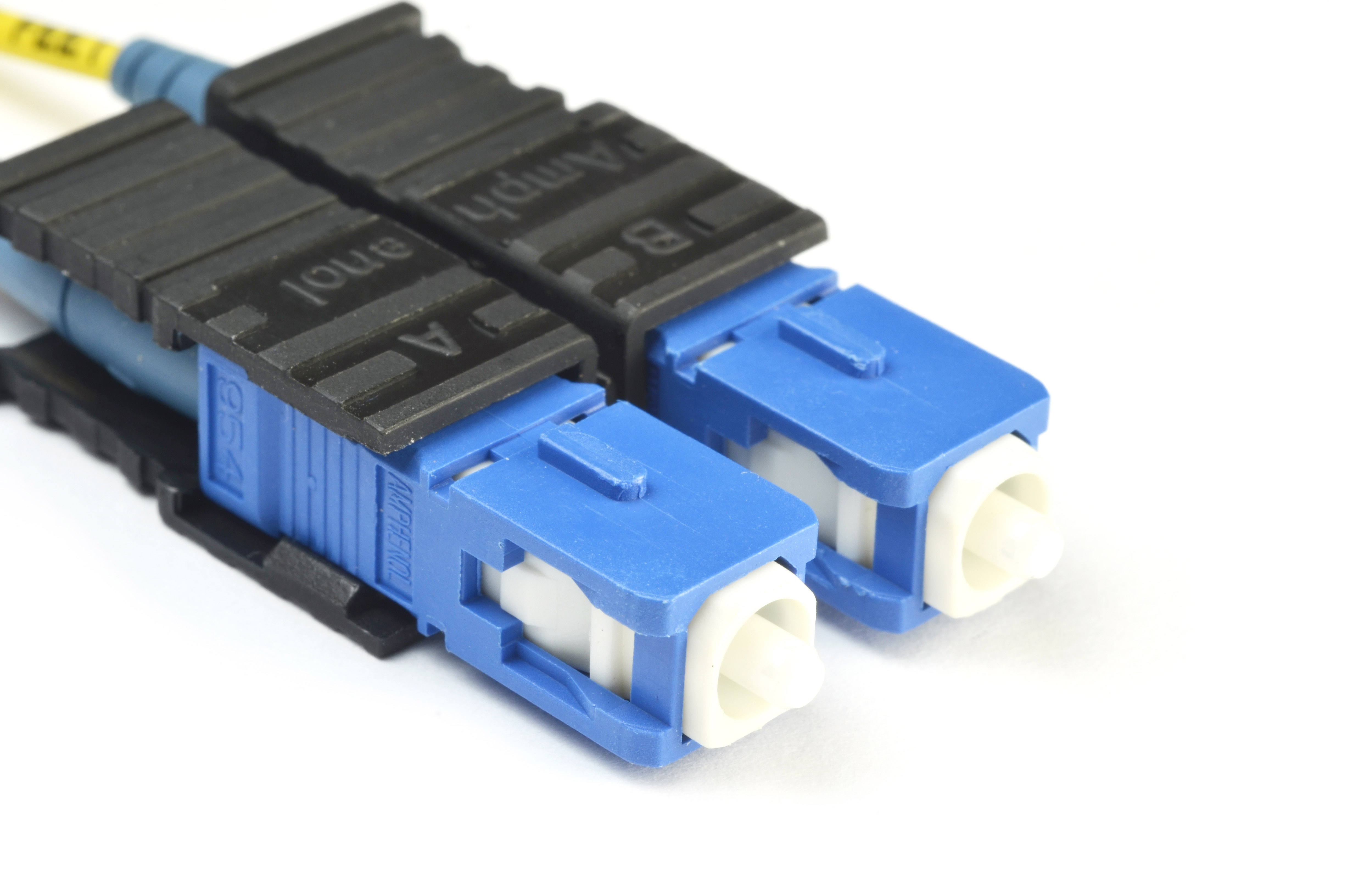

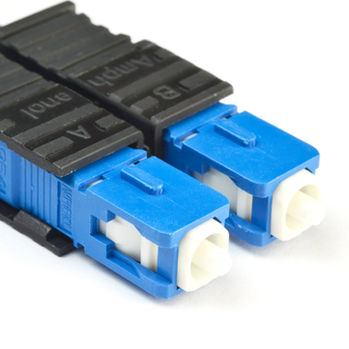

    • Duplex version utilizes a removable flexible clip providing a float between channels A and B

    • High temperature and UL 94-V0 rated plastic housing and boots available in multiple colors

    • Tight tolerance ferrules for low loss performance

    • Available in singlemode, angled singlemode, and multimode versions

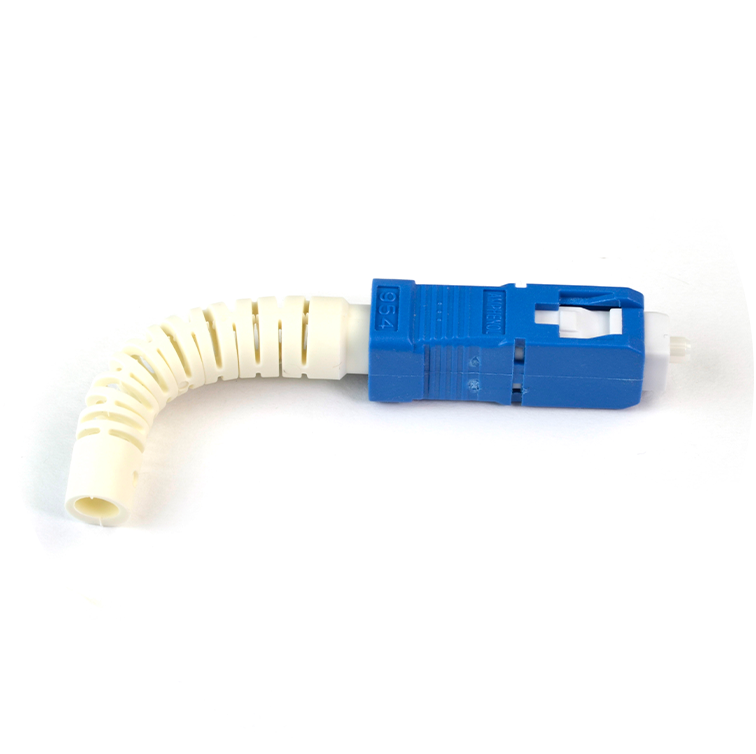

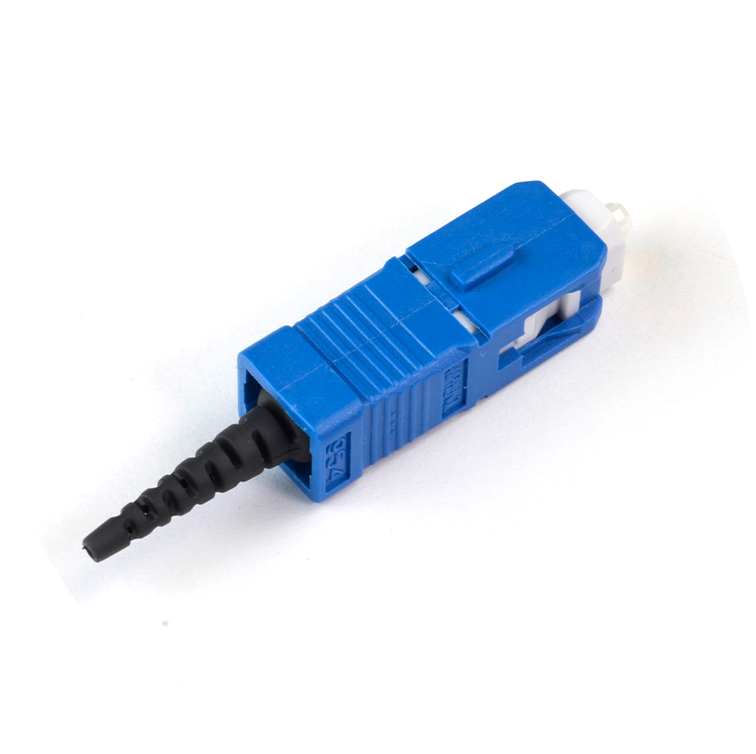

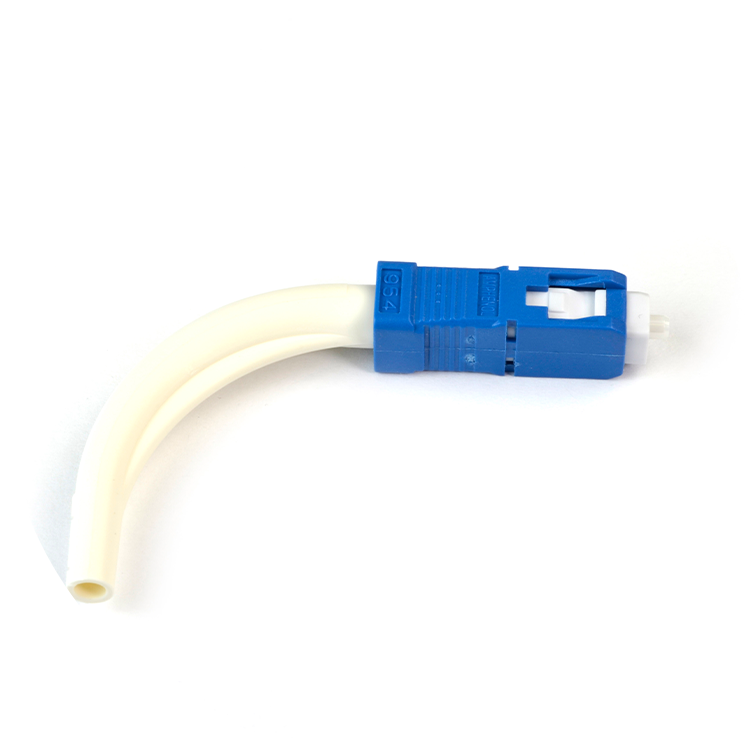

    • Available with 900μm, 1.2mm, 2.0mm, 3.0mm, flex, and 45/90 degree boots in multiple colors

    • Blind mate Housing

  • Insertion Loss:

    ≤ 0.15dB Typical Singlemode

    ≤ 0.23dB Typical APC

    ≤ 0.50dB Typical Multimode

    Return Loss:

    Ultra (UPC) > 55dB

    Angle (APC) > 65dB

    Durability:

    < 0.2dB change, 200 Mating Cycles

    Temperature:

    <0.3dB change, -40 to +85°C

  • IT/Datacom
    Telecom
    DAS

    FTTH

    Broadband

  • 954-101-57203B        SC SIMPLEX, M/M, 128μm, BEIGE COUPLING SLEEVE, BLACK BOOT, 3MM

    954-101-57293B        SC SIMPLEX, S/M, 125.5μm, BLUE COUPLING SLEEVE, BLACK BOOT, 3MM

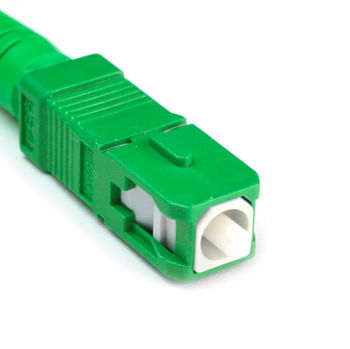

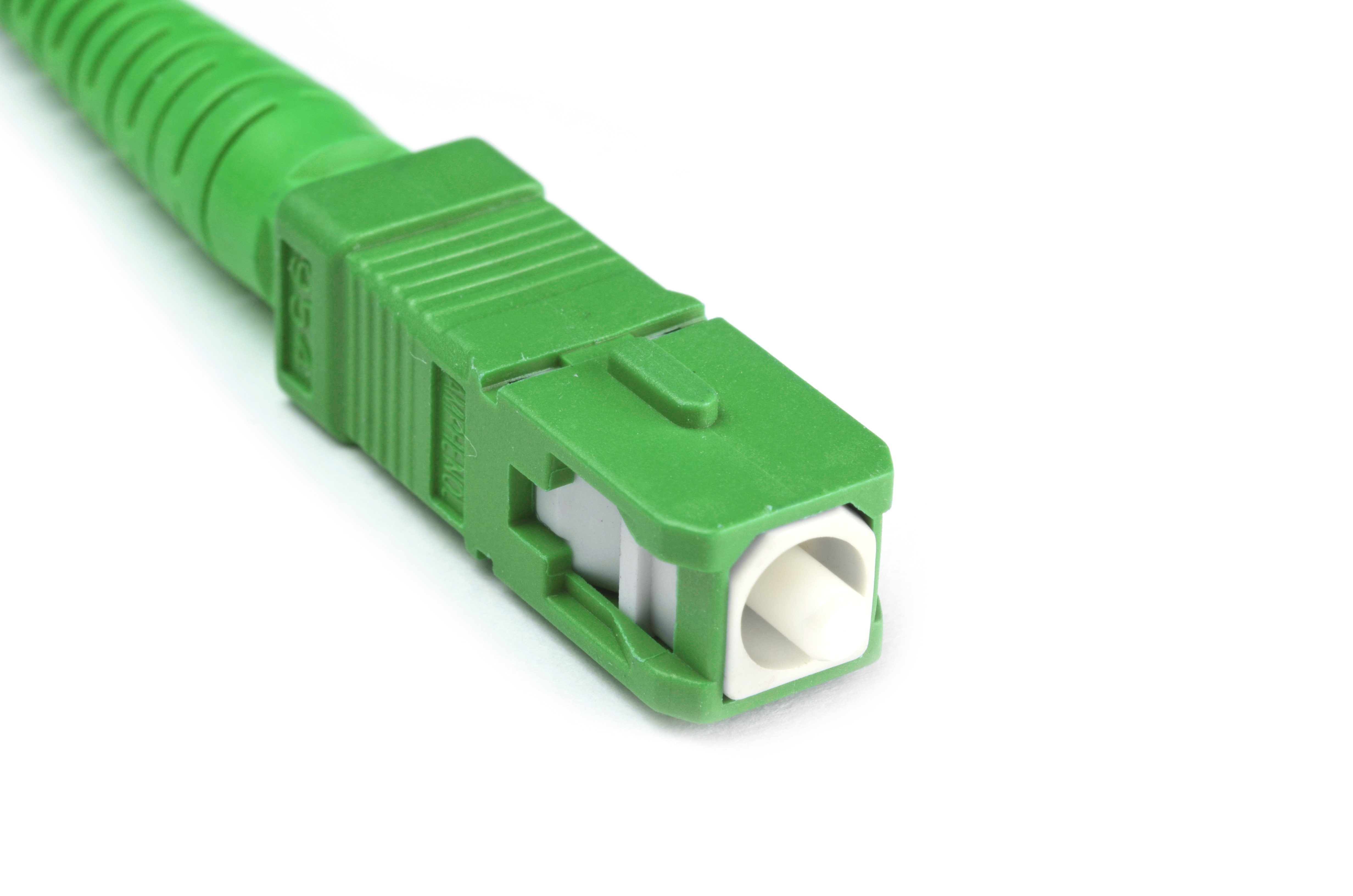

    954-103-57393G        SC/APC SIMPLEX, S/M, CONICAL FERRULE, GREEN SLEEVE & BOOT, 3MM
    954-101-57202B        SC SIMPLEX, M/M, 128μm, BEIGE COUPLING SLEEVE, BLACK BOOT, 2MM

    954-101-57209B        SC SIMPLEX, M/M, 128μm, BEIGE COUPLING SLEEVE, BLACK BOOT, 900μm

    954-101-58203B        SC DUPLEX, M/M, 128μm, BEIGE COUPLING SLEEVE, BLACK BOOT, 3MM


SC Variations

Connector Body

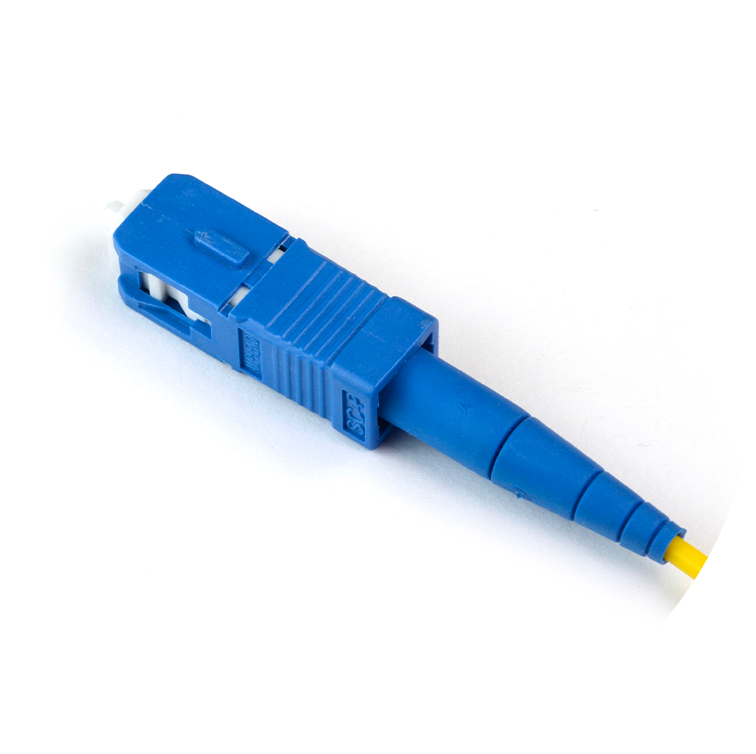

Connector Boots
