Traceable Cable Assemblies

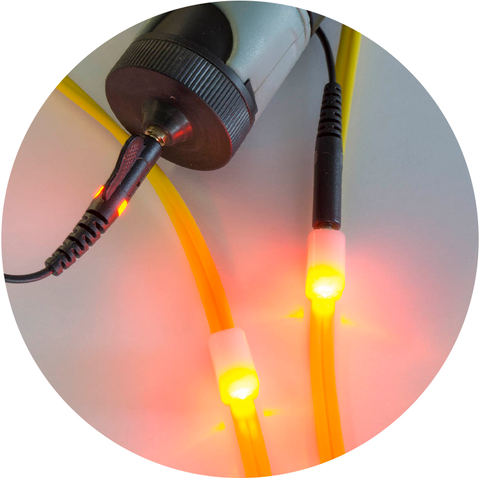

Amphenol Fiber Optic Products presents an innovative solution for fiber patching. The traceable fiber patch cord is an effective solution for eliminating interconnect errors in dense interconnect environments. When the power source is connected to the traceable indicator on one end of the patch cord, the traceable indicator on the other end of the patch cord lights up, allowing identification of patches even in dense installations.
Some of the more significant areas to use the traceable patch cord include data centers, central offices, mobile switching centers, telecommunication closets, active and passive fiber distribution hubs, and multi-dwelling units.
-
LED indicator at both ends of jumper
-
Flashlight style tool to apply power to one end of jumper to easily identify the far end of a jumper in connected area
-
Assemblies are available in Singlemode Bend Insensitive Fiber (BIF) and multimode OM3 and OM4 fiber types
-
All assemblies meet TIA/EIA and IEC intermateability standards
-
RoHS compliant
-
Available in a wide variety of connector types and length
-
Custom configurations available upon request, including multiple boot styles, colors and angle options
-
Reduced operating expense by reducing installation, maintenance and troubleshooting time
-
Simplify and speed up deployment and cross-connect
-
Eliminates errors due to mislabeling, missing labels or confusion in high density frames
-
Insertion Loss:
≤ 0.15dB Typical Singlemode
≤ 0.50dB Typical Multimode
Return Loss:
Ultra (UPC) ≤ -55dB*
Durability:
< 0.2dB change, 500 Mating Cycles
Temperature:
<0.3dB change, -40 to +85°C
IT/Datacom
Data Centers
Wireless942-98651-10001 JUMPER, LC/UPC(D) 1 LEG TRACEABLE ZIP, 1M
942-98652-10001 JUMPER, LC/UPC SIMPLEX TRACEABLE, 1M943-99814-10001 JUMPER, LC(D), OM4 1 LEG TRACEABLE ZIP, 1M
927-3449 TOOL, POWER SOURCE, TRACEABLE, TORCH
