H-Connector Cable Assemblies
Amphenol's H-Connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The H-Connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the H-Connector provides an ideal solution for direct burial, conduit, or aerial installations.
-
Allows flexibility to use factory terminated assemblies
-
Provides superior weather resistance for FTTH and other outdoor applications
-
Ensures functionality in harsh weather environments
-
Can be used with industry standard cable designs
-
Easily installs without special tooling
-
Threaded style coupling
-
Provides bend protection for installation and long term use
-
-
Single fiber, SC-based connector
-
IP68 (3 meters/7 days)
-
Low profile in-line receptacle available
-
No installation tools required
-
Durability: 50 cycles
-
In-line connection available
-
Operating temperature: -40° to 75°C
-
Cable Diameter Range: 4.8mm to 7mm
-
33 lb. axial cable retention (150N)
-
Insertion Loss:
≤ 0.15dB Typical Singlemode
≤ 0.23dB Typical APC
Return Loss:
Ultra (UPC) ≤ -55dB*
Angle (APC) ≤ -65dB*
Durabilty:
< 0.2dB change, 50 mating cycles
Temperature:
<0.3dB change, -40 to +75°C
*Specs based on the use of Amphenol SC
FTTH
Outdoor AreasHarsh Environment

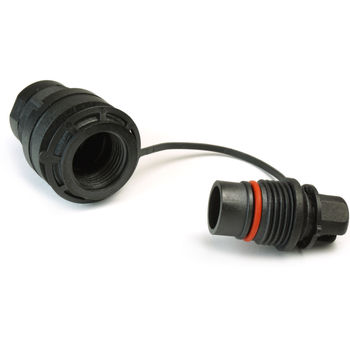

958-6001 H-CONN, RECEPTACLE

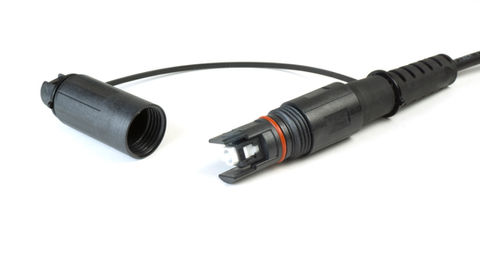

942-98468-10001 H-CONN, PIGTAIL, S/M FLAT DROP, 1M
942-98469-10001 H-CONN, PIGTAIL, S/M ROUND CABLE, 1M
Key Features
