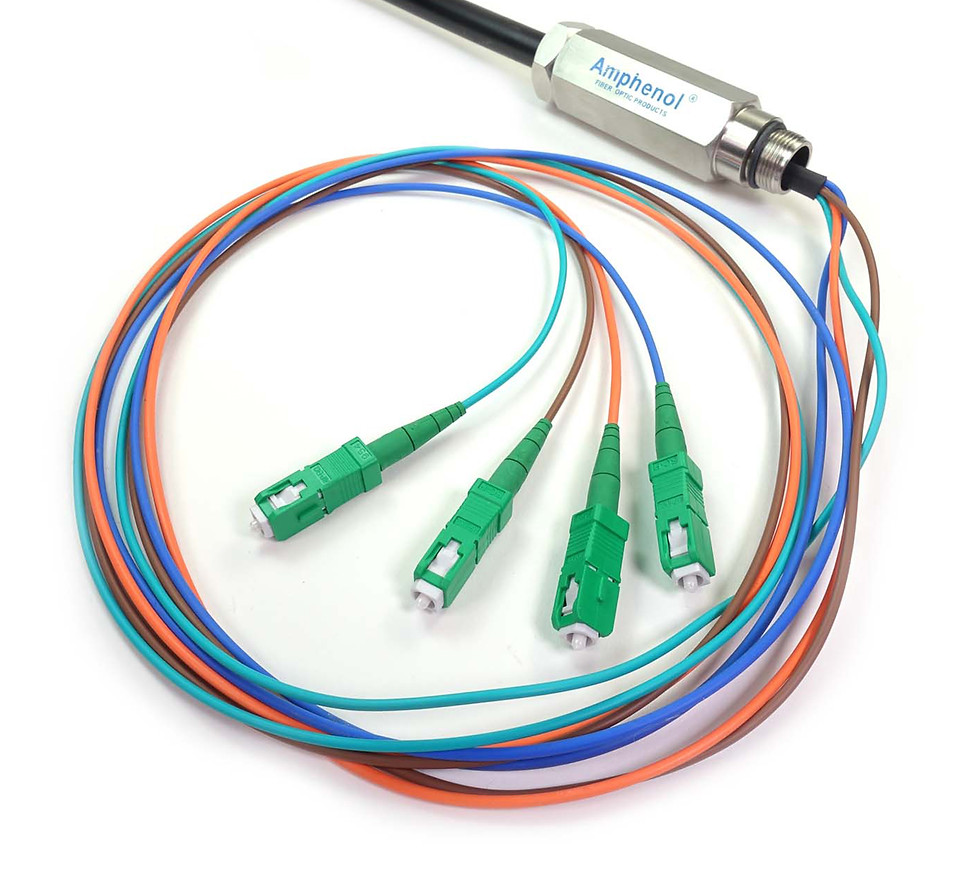

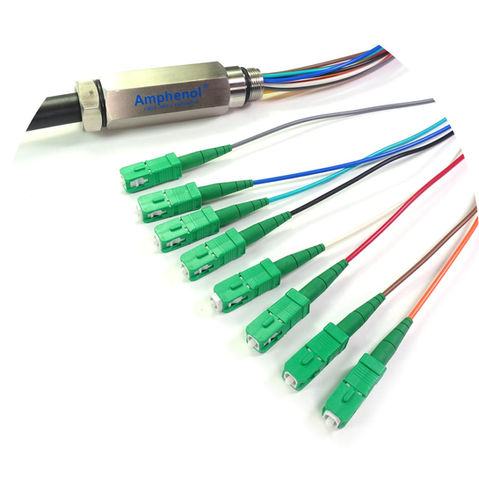

NODE Cable Assemblies
Amphenol’s node Cable Assemblies link optical transport cable to optical processing equipment. This connection is critical and requires an environmental seal between the cable and the node feed-thru. Amphenol’s node cables utilize a unique IP68 rated stainless steel feed-thru adapter, featuring an anti-twist coupling body and an optional anti-rotating nut. Our standard node assemblies use either a dielectric outside plant (OSP) cable or an armored OSP cable. Their multiple O-rings ensure a fully sealed cable and node.
-
Available with SC, LC, ST, or FC connectors
-
Feed-thru body features an anti-twist design, allowing tightening of the node without twisting the cable
-
Available with 900um or 2mm fan-out
-
Submersible up to 10ft of water head
-
Potted furcation for secure environmental protection
-
Stainless steel fitting for added strength and environmental durability
-
-
IP68 water and dust protection (10ft waterhead)
-
Factory terminated for high performance
-
Cable retention: 445 N (100 lbs)
-
Cable diameter range: 4.8mm to 7.0mm
-
No installation tools required
-
Strain relief: 100lbs/ft
-
Fiber count: 2-20
-
Standard SCTE 5/8”-24 UNEF thread
-
Insertion Loss:
≤ 0.15dB Typical Singlemode UPC
≤ 0.23dB Typical Singlemode APC
≤ 0.35dB Typical Multimode
Return Loss:
Ultra (UPC) ≤ -55dB*
Angle (APC) ≤ -65dB*
Durability:
< 0.2dB change, 100 mating cycles
Temperature:
<0.3dB change, -40 to +75°C
*Specs based on the use of Amphenol SC
FTTH/FTTA
Outdoor Areas
WirelessHarsh Environments
Small Cells
962-11220-01030 PIG, 4F SC/UPC OSP OFNR, 1M, BO 30M
962-11320-01031 PIG, 6F SC/UPC OSP OFNR, 1M BO, 31M
962-12120-63030 PIG, 2F SC/APC OSP OFNR, 63CM BO, 30M
Key Features
